CLAMPING SYSTEMS

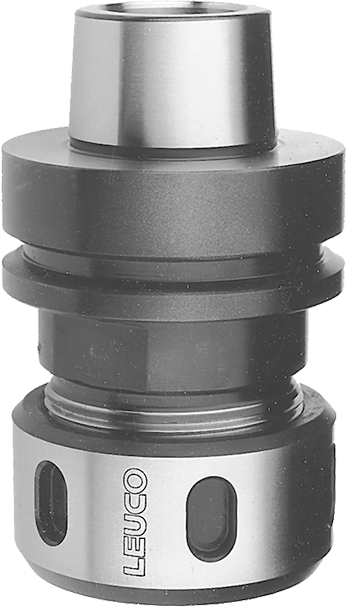

CNC Draw-In Collet Chucks With HSK Shank
$346.10
● IN STOCK
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
Draw-In Collet Chucks are used for precise clamping of shank type tools with cylindrical shank on CNC machining centers with automatic tool changer. These chucks provide flexible utilization by collet chucks. For Right and Left hand rotation. (Collet chuck, clamping nut without spanner wrench included.)
VENDOR: LEUCO Clamping Systems
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CLA 2-25 x 60 x 101 HSK 63F X18 462E | $346.10 | 173293 | In Stock |
| CLA 2-25 x 63 x 101 HSK 63F X18 472E | $380.33 | 1734715 | In Stock |
| CLA 2-25 x 60 x 101 HSK 63F X9 462E | $481.98 | 175795 | |
| CLA 2-25 x 60 x 101 HSK 63F X18 472E | $380.33 | A1734715 | In Stock |
| CLA 2-20 x 50 x 94 HSK 63F X18 470E | $306.15 | 1739775 | In Stock |

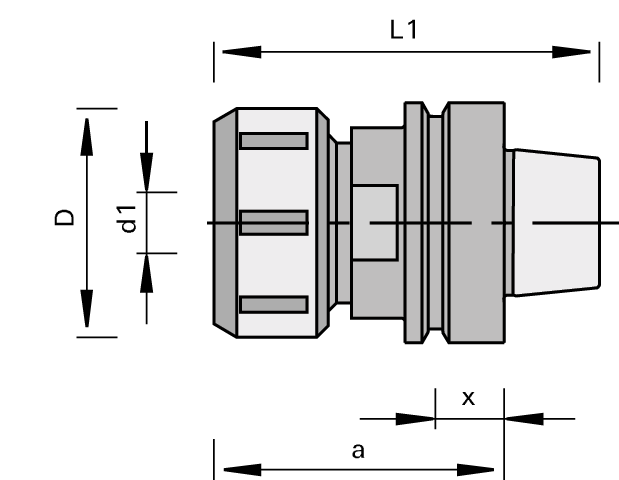

Specifications for SKU: 173293
| Diameter - Outermost cutting point [mm] | 60 |
| Bore / shank diameter [mm] | 63 |
| Clamping length [mm] | 25 |
| Interface towards the machine | HSK-F [HSK-F] |
| A measures [mm] | 76 |
| Bore / shank diameter [mm] | 25 |
| Total length | 101 |
| Diameter max [mm] | 60 |
| Cutting direction | Universal [UNI] |
| Type of feed | Mechanical feed [MEC] |
| Total length 1 [mm] | 76 |
| Weight Kg | 1.31 |
| RPM max [min-1] | 24000 |
| Norm | DIN 69893 |
| Interface towards the tool specification | 2-25 |
| Type | 1 |
Application
- —for precise clamping of shank-type tools with cylindrical shank
Machines
- —CNC machining centers with automatic tool changer
- —Use on joinery machines
Design
- —interface according to DIN 69893 HSK 50F, HSK 63F, HSK 63E, HSK 80A, HSK 80C, HSK 80E, HSK 80F and HSK 100A
- —lock nut with sleeve bearing
Advantages
- —flexible utilization by collet chucks
