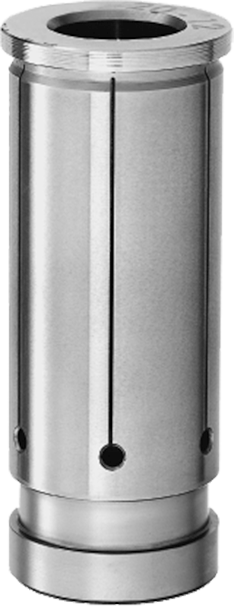

CNC Intermediate Universal Reducing Bushings Sleeve
$302.69
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
Universal bushings are used for mounting of shank-type tools in SINO, Tribos, and ps-System clamping systems.
VENDOR: LEUCO Accessories
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| ACC 8 x 12 x 45 IUS | $302.69 | 183026 | |
| ACC 16 x 20 x 50.5 IUS | $291.62 | 183034 | |
| ACC 10 x 20 x 50.5 IUS | $244.70 | 183040 | |
| ACC 12 x 25 x 56.5 IUS | $437.83 | 182307 | |
| ACC 14 x 25 x 56.5 IUS | $427.32 | 182308 | |
| ACC 16 x 25 x 56.5 IUS | $549.27 | 182309 | |
| ACC 20 x 25 x 56.5 IUS | $549.27 | 182311 | |
| ACC 1/2 x 25 x 56.5 IUS | $689.12 | 182653 | |
| ACC 5/8 x 25 x 56.5 IUS | $549.27 | 182654 | |
| ACC 3/4 x 25 x 56.5 IUS | $689.12 | 182655 |

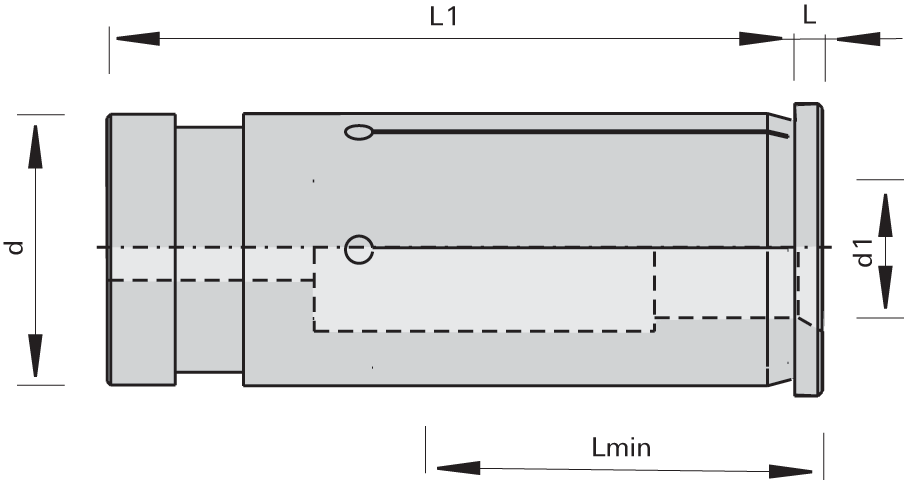

Specifications for SKU: 183026
| Bore / shank diameter [mm] | 12 |
| Clamping length [mm] | 45 |
| Bore / shank diameter [mm] | 8 |
| Total length | 2 |
| Cutting direction | Universal [UNI] |
| Minimum clamping length [mm] | 27 |
| Weight Kg | 0.027 |
Application
- —for holding shank tools in TRIBOS, ps-System and all standard hydro expansion chuck
Design
- —concentric accuracy ? 0.003 mm
- —shank diameter tolerance h7 or g7
- —coolant-tight up to 80 bar
Advantages
- —permanent concentricity and tool-change repeat accuracy ? 0.003 mm
