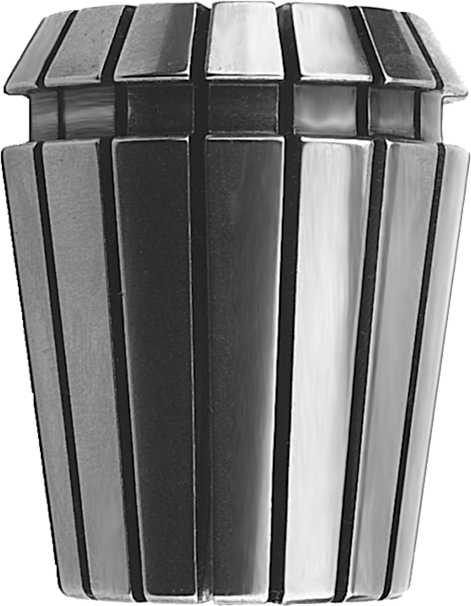

CNC Metric 462E/SYOZ26 Precision Collets
$119.29
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
Draw-In Collet Chucks need precision collets to hold your tool more securely. LEUCO collets provide optimal transmission of clamping force in your Draw-In Collet Chuck. This design features a clamping tolerance of 0.5 mm.
VENDOR: LEUCO Accessories
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| ACC 3 x 35.05 x 52 462E | $119.29 | 183804 | |
| ACC 4 x 35.05 x 52 462E | $60.84 | 183805 | |
| ACC 5 x 35.05 x 52 462E | $61.17 | 183806 | |
| ACC 6 x 35.05 x 52 462E | $55.06 | 180213 | |
| ACC 7 x 35.05 x 52 462E | $92.35 | 183807 | |
| ACC 8 x 35.05 x 52 462E | $75.29 | 180358 | |
| ACC 9.5 x 35.05 x 52 462E | $57.20 | 175817 | |
| ACC 10 x 35.05 x 52 462E | $70.52 | 170782 | In Stock |
| ACC 12 x 35.05 x 52 462E | $60.84 | 168742 | |
| ACC 13 x 35.05 x 52 462E | $77.79 | 180215 | |
| ACC 14 x 35.05 x 52 462E | $76.39 | 170783 | |
| ACC 16 x 35.05 x 52 462E | $76.39 | 168743 | |
| ACC 18 x 35.05 x 52 462E | $77.79 | 180216 | |
| ACC 20 x 35.05 x 52 462E | $76.39 | 168744 | In Stock |
| ACC 25 x 35.05 x 52 462E | $79.21 | 168745 |

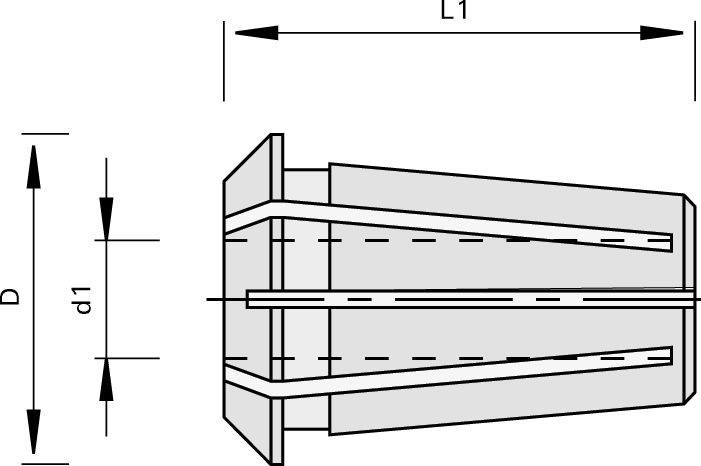

Specifications for SKU: 183804
| Bore / shank diameter [mm] | 3 |
| Total length | 52 |
| Diameter max [mm] | 35.05 |
| Cutting direction | Universal [UNI] |
| Weight Kg | 0.2 |
| Norm | DIN 6388 462E/OZ25 |
Application
- —for use in draw-in collet chuck Type 462E/OZ25
Design
- —clamping tolerance 0.5 mm
- —according to DIN 6388 Type 462E/OZ25
Advantages
- —optimum transmission of clamping force thanks to 12 slots from top and bottom
