DIAMAX SmartJointer Airface 125mm Cutterhead With 35 Degree Shear
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
The airFace cutterhead is ideally suited for customers who attach importance to a low noise level and/or who want to be independent of sharpening saving you time and money. Provided with a set of suitable replacement segments, they will be able to re-equip their tools at any time. These dynamic cutterheads are suitable for jump-milling units for very quiet jointing of solid wood and wood-based panels with and without coating, focusing particularly on the reduction of unbalance and noise. The aluminum body with airFace surface and exchangeable stainless steel diamond cutting edges with large sheer angle provide a reduced power consumption, excellent cutting quality, and corrosion protection of the entire tool.
Full details, features, and machine fit are under Details below.
VENDOR: LEUCO Cutter Heads
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CUT 125 x 43 x 40 x 30 Z = 3+3 | $1,789.81 | 186047 | In Stock |
| CUT 125 x 64 x 40 x 30 Z = 3+3 | $2,448.54 | 186048 | |
| CUT 125 x 43.2 x 54 x 30 Z3+3 LH | $1,670.94 | 185971 | In Stock |
| CUT 125 x 43.2 x 54 x 30 Z3+3 RH | $1,670.94 | 185970 | In Stock |
| CUT 125 x 64.4 x 54 x 30 Z3+3 LH | $2,421.37 | 185973 | |
| CUT 125 x 64.4 x 54 x 30 Z3+3 RH | $2,421.37 | 185972 | |
| CUT 125 x 64.4 x 72 x 30 Z3+3 LH | $2,602.02 | 186049 | |
| CUT 125 x 64.4 x 72 x 30 Z3+3 RH | $2,602.02 | 186050 |

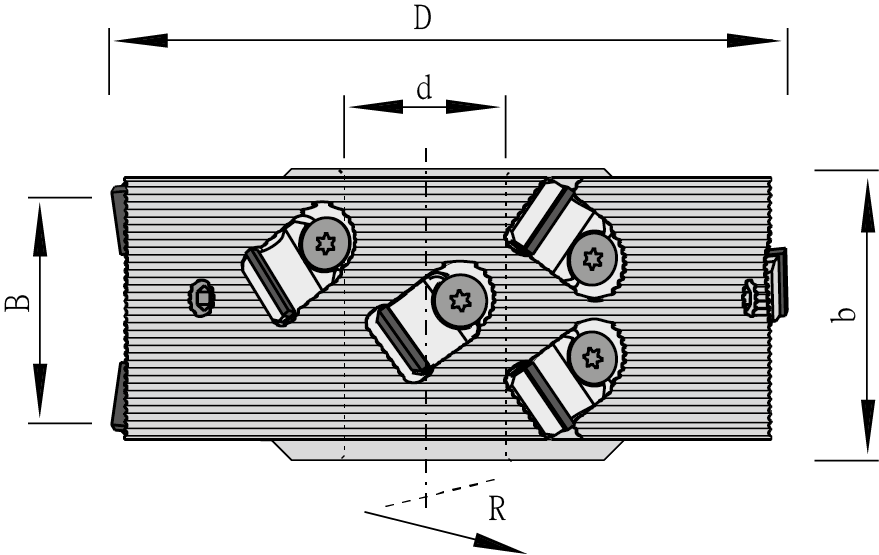

Specifications for SKU: 186047
| Diameter - Outermost cutting point [mm] | 125 |
| Bore / shank diameter [mm] | 30 |
| Cutting width 1 [mm] | 43 |
| Clamping length [mm] | 40 |
| Number of teeth | 3+3 |
| Interface towards the machine specification | 8X3,3 |
| Number of teeth diameter [mm] | 3 |
| Number ofexchangeable knives | 12 |
| Interface towards the machine | Bore, DKN [BO-DKW] |
| Total length | 48.4 |
| Cutting material group | Polycrystalline diamond (PCD) [DP] |
| Resharpening area | 1.5 |
| Diameter max [mm] | 125 |
| Diameter [mm] | 125 |
| Cutting direction | Universal [UNI] |
| Type of feed | Mechanical feed [MEC] |
| Total length 1 [mm] | 44.2 |
| Length [mm] | 20 |
| Weight Kg | 1.34 |
| RPM max [min-1] | 10500 |
| Symmetry | symmetrisch [SYM] |
Application
- —for jump-milling units for very quiet jointing of solid wood and wood-based panels with and without coating, focusing particularly on the reduction of unbalance and noise
Machines
- —edge banding machines

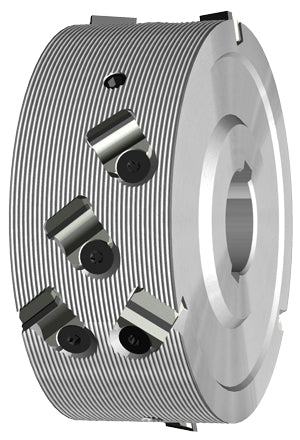

Design
- —aluminum body with airFace surface
- —with exchangeable stainless steel DP cutting edges
- —DP cutting edges with integrated stainless steel gullet
- —shear angle 35°
- —resharpening area 1.5 mm
Advantages
- —additional noise reduction by up to -3 dB (A) thanks to the airFace design
- —reduced power consumption thanks to low-weight design with aluminum body
- —easy on spindle bearing thanks to less unbalance
- —exchangeable DP cutting edges incl. wear-resistant exchangeable gullet
- —excellent cutting quality thanks to large shear angle
- —corrosion protection of the entire tool by stainless steel segments
- LEUCO Jointing cutters overview
- Processing instructions: senosan Topx acryl glass clear
- Processing instructions: FUNDERMAX Premium Star LOTOS
- Processing instructions: FUNDERMAX Premium Star LUXOS
- Processing instructions: Duropal XTreme
- Processing instructions: Rehau Rauvisio crystal
- Processing instructions: senosan AM1800TopX
- Processing instructions: senosan AM1500 XU
- Processing instructions: RESOPAL Traceless Premium TP
- Processing instructions: Unilin Evola melamine faced
- Processing instructions: Homapal melamine panel
- FUNDERMAX PremiumStar Aptico Supergloss
- Processing instructions: Rheinspan Zero Matt
- Processing instructions: Rehau RAUVISIO cube Urban Concrete
- Processing instructions: Egger decorative panels
- Trend materials LEUCO tool recommendations
Published by LEUCO. Opens on leuco.com.
The airFace cutterhead is ideally suited for customers who attach importance to a low noise level and/or who want to be independent of sharpening saving you time and money. Provided with a set of suitable replacement segments, they will be able to re-equip their tools at any time. These dynamic cutterheads are suitable for jump-milling units for very quiet jointing of solid wood and wood-based panels with and without coating, focusing particularly on the reduction of unbalance and noise. The aluminum body with airFace surface and exchangeable stainless steel diamond cutting edges with large sheer angle provide a reduced power consumption, excellent cutting quality, and corrosion protection of the entire tool.
Any items needed for replacing parts, such as DP replacement segments, torque wrenches and screws, are also available from LEUCO.
