SAW BLADES

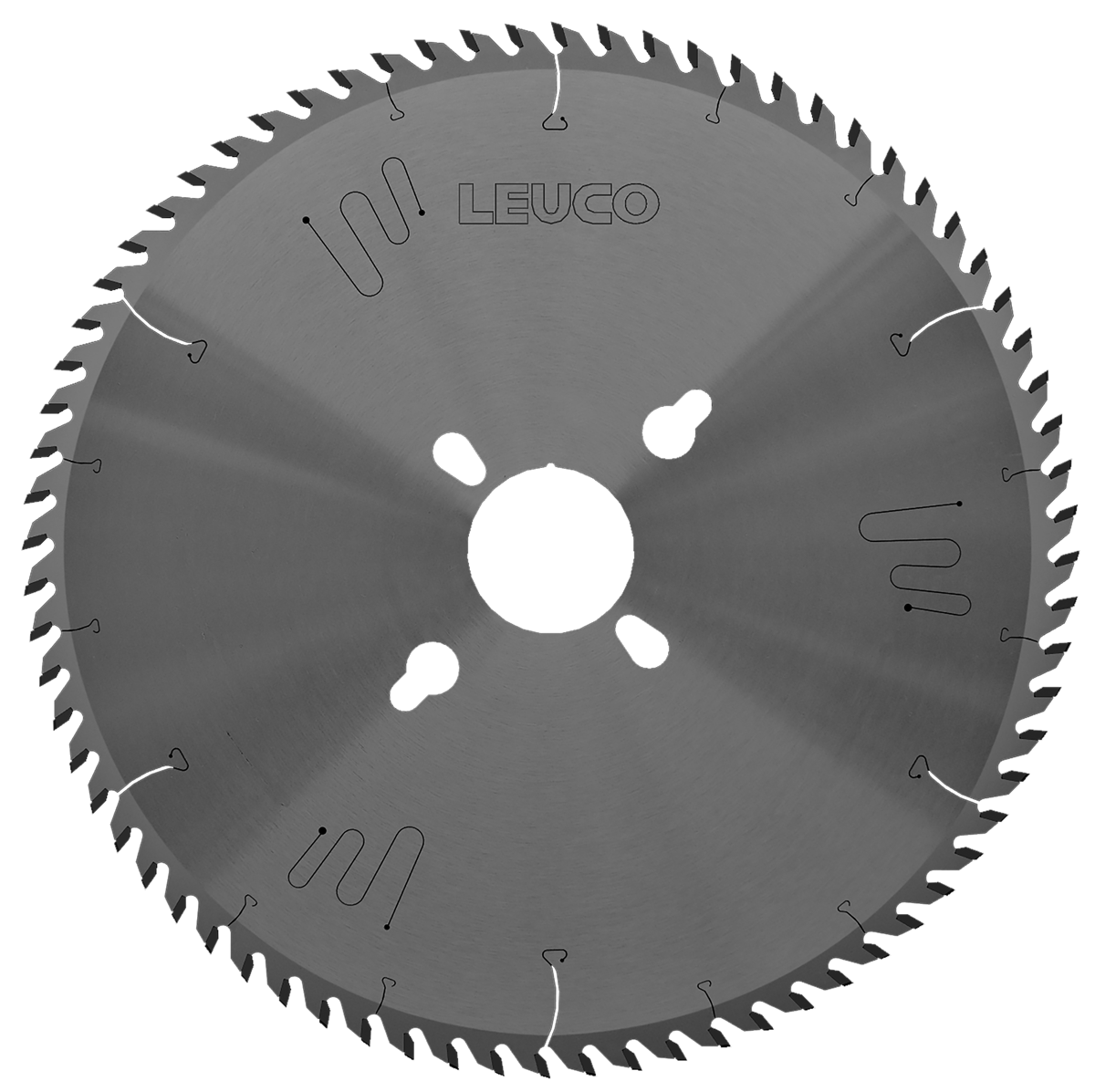

G5 System Q-Cut Tungsten Carbide Panel Sizing Saw Blades
$482.66
● IN STOCK
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
These panel saws are an excellent choice for sizing and finish cuts in wood core plywood, plywood boards, veneered or paper-laminated wood-based panels and honeycomb panels. These blades feature vibration and noise damping ornaments along with additional expansion slots with our G5 tooth configuration and alternating face shear. Excellent cutting quality in wood-based materials containing fibers and extremely low-noise and smooth running! When choosing the right scoring blade please pay attention to the cutting width reduction of 4mm.
VENDOR: LEUCO Circular Saw Blades
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CIR 350 x 4 x 30 Z80 | $482.66 | 192813 | In Stock |
| CIR 350 x 4 x 60 Z80 | $482.66 | 192814 | In Stock |
| CIR 380 x 4 x 60 Z80 | $499.76 | 192815 | In Stock |
| CIR 400 x 4 x 30 Z85 | $541.11 | 192816 | In Stock |
| CIR 430 x 4 x 80 Z90 | $428.14 | 192818 | In Stock |
| CIR 450 x 4 x 60 Z90 | $592.46 | 192819 | In Stock |
| CIR 460 x 4 x 30 Z90 | $471.65 | 192820 | In Stock |
Specifications for SKU: 192813
| Diameter - Outermost cutting point [mm] | 350 |
| Bore / shank diameter [mm] | 30 |
| Cutting width 1 [mm] | 4 |
| Clamping length [mm] | 3.2 |
| Pin holes [mm] | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 |

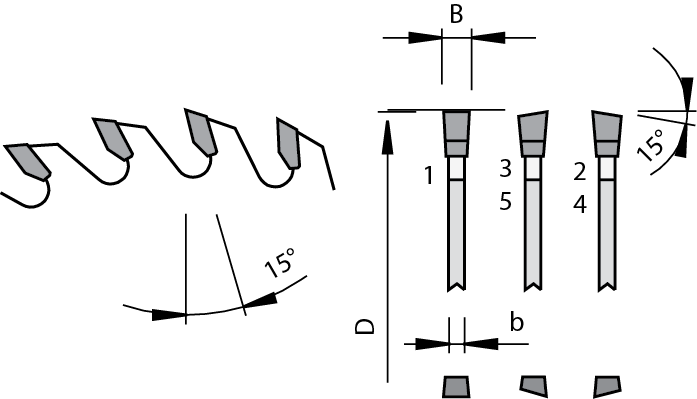

| Tooth configuration | G5 [G5] |
| Number of teeth | 80 |
| Number of teeth diameter [mm] | 80 |
| Interface towards the machine | Bore [BO] |
| Cutting material specification | HL Board 04 [B04] |
| Cutting material group | Tungsten carbide [HW] |
| Diameter max [mm] | 350 |
| Diameter [mm] | 350 |
| Cutting direction | Universal [UNI] |
| Type of feed | Universal [UNI] |
| Weight Kg | 2.301 |
| RPM max [min-1] | 5500 |
Application
- —for sizing and finish cuts in wood core plywood, plywood boards, veneered or paper-laminated wood-based panels and honeycomb panels
Machines
- —horizontal panel sizing saws
Design
- —vibration and noise damping ornaments
- —additional expansion slots
- —tooth configuration: G5
- —cutting material: HW HL Board 04 plus
Advantages
- —very low cutting pressure and small power consumption thanks to optimized cutting geometry
- —excellent cutting quality in wood-based materials containing fibers
- —extremely low-noise and smooth running thanks to vibration and noise damping ornaments as well as special expansion slot combinations
