SAW BLADES

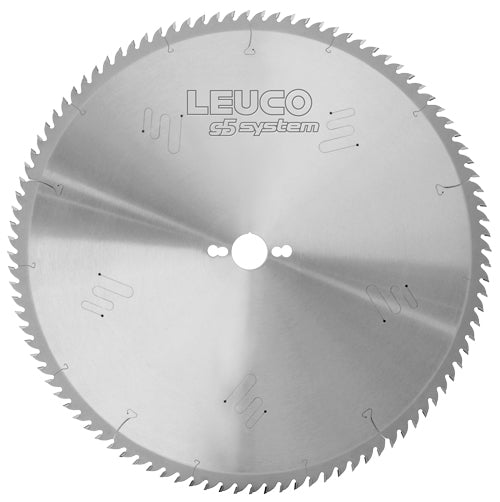

G5 System Tungsten Carbide Sizing Saw Blade
$249.94
● IN STOCK
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description

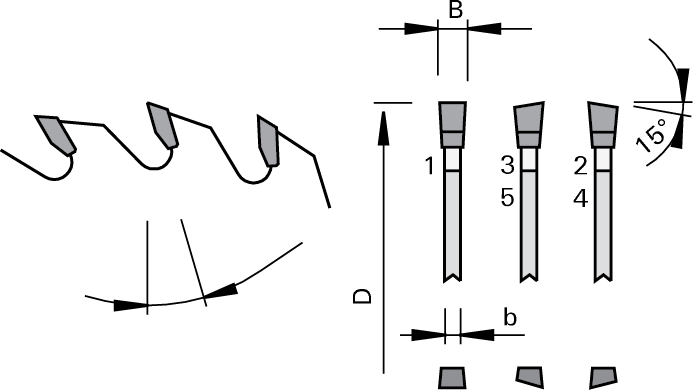

For best cutting quality in many materials you should consider the G5. The G5 has an ATB with alternating face shear which yields a better cut quality. We call it a G5 for its repeating 5 tooth sequence: Right Left Right Left FLAT. This blade type is suitable for a chip-free sizing cut & well as clipping & miter cuts in wood-based panels, solid woods, & plastics. The LEUCO HL Board 04 plus brings excellent cutting quality for cross cuts, extremely long edge life, & noise-reduction thanks to laser ornaments.
VENDOR: LEUCO Circular Saw Blades
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CIR 200 x 3 x 2.2 x 30 Z65 | $249.94 | 192789 | In Stock |
| CIR 220 x 3 x 2.2 x 30 Z70 | $232.31 | 192790 | In Stock |
| CIR 240 x 3 x 2.2 x 30 Z75 | $289.17 | 192791 | In Stock |
| CIR 250 x 3 x 2.2 x 30 Z80 | $212.71 | 192792 | In Stock |
| CIR 280 x 3 x 2.2 x 30 Z85 | $319.57 | 192793 | In Stock |
| CIR 300 x 3 x 2.2 x 30 Z100 | $272.80 | 192794 | In Stock |
| CIR 303 x 3.2 x 2.2 x 30 Z100 | $365.39 | 192795 | In Stock |
| CIR 315 x 3 x 2.2 x 30 Z100 | $292.38 | 192801 | In Stock |
| CIR 350 x 3 x 2.2 x 30 Z100 | $279.50 | 192796 | In Stock |
| CIR 380 x 3 x 2.2 x 32 Z120 | $326.53 | 192802 | In Stock |
| CIR 400 x 3 x 2.2 x 30 Z120 | $548.66 | 192797 | In Stock |
| CIR 450 x 3.6 x 2.8 x 30 Z130 | $525.58 | 192798 | In Stock |
| CIR 500 x 3.6 x 2.8 x 30 Z145 | $579.60 | 192799 | In Stock |
| CIR 550 x 4 x 3.6 x 30 Z160 | $681.81 | 192803 | In Stock |
Specifications for SKU: 192789
| Diameter - Outermost cutting point [mm] | 200 |
| Bore / shank diameter [mm] | 30 |
| Cutting width 1 [mm] | 3 |
| Clamping length [mm] | 2.2 |
| Tooth configuration | G5 [G5] |
| Number of teeth | 65 |
| Number of teeth diameter [mm] | 65 |
| Interface towards the machine | Bore [BO] |
| Cutting material specification | HL Board 04 [B04] |
| Cutting material group | Tungsten carbide [HW] |
| Diameter max [mm] | 200 |
| Diameter [mm] | 200 |
| Cutting direction | Universal [UNI] |
| Type of feed | Universal [UNI] |
| Weight Kg | 0.68 |
| RPM max [min-1] | 7700 |
Application
- —for chip-free sizing cuts as well as clipping and mitre cuts in wood-based panels, solid woods and plastics
Machines
- —table saws
- —chop and miter saws
Design
- —tooth configuration: G5
- —cutting material: HW HL Board 04 plus
Advantages
- —excellent cutting quality for cross cuts
- —excellent cutting quality thanks to special tooth geometry
- —extremely long edge lives
- —noise-reduction thanks to laser ornaments
- Processing instructions: WestagGetalit Mondo
- Processing instructions: Duropal XTreme
- Processing instructions: EGGER PerfectSense
- Processing instructions: Swiss Krono SwissAFP panels
- Processing instructions: Rehau Rauvisio crystal
- Trend materials LEUCO tool recommendations
- LEUCO g5 g7 System Aluminum Plastic
