SAW BLADES
Highline Sizing Saw Blades with 15 Degree Hook Angle for Wood-Based Panels
$87.54
● IN STOCK
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description

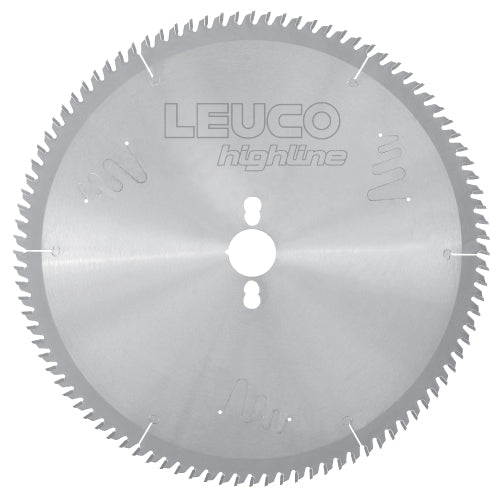

LEUCO carbide sizing ATB sawblades are used for sizing cuts in wood-based panels on table saws or special saws. These blades feature a WS; Alternate Top Bevel design & a hook angle of 15 degrees to provide optimum cutting quality. The various numbers of teeth options provide the longest edge life & feed rate & adjustment for material thickness. *Alteration of bore possible if needed.
VENDOR: LEUCO Circular Saw Blades
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CIR 150 x 3.2 x 2.2 x 30 Z24 | $87.54 | 189953 | In Stock |
| CIR 180 x 3.2 x 2.2 x 30 Z30 | $87.54 | 189956 | In Stock |
| CIR 200 x 3.2 x 2.2 x 30 Z34 | $87.54 | 189958 | In Stock |
Specifications for SKU: 189953
| Diameter - Outermost cutting point [mm] | 150 |
| Bore / shank diameter [mm] | 30 |
| Cutting width 1 [mm] | 3.2 |
| Clamping length [mm] | 2.2 |
| Pin holes [mm] | 2/7/42 |
| Tooth configuration | Alternate top bevel [WS] |
| Number of teeth | 24 |
| Number of teeth diameter [mm] | 24 |
| Cutting material specification | HL Board 10 [B10] |
| Cutting material group | Tungsten carbide [HW] |
| Diameter max [mm] | 150 |
| Diameter [mm] | 150 |
| Cutting direction | Universal [UNI] |
| Type of feed | Universal [UNI] |
| Weight Kg | 0.37 |
| RPM max [min-1] | 10200 |
Application
- —for sizing cuts in wood-based panels
Machines
- —table saws
- —special saws
Design

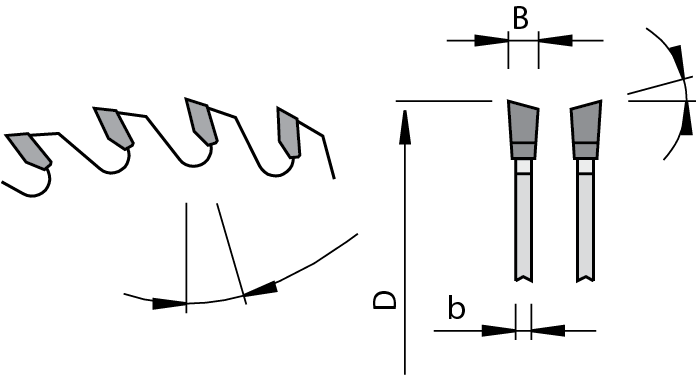

- —tooth configuration: alternate top bevel "WS"
- —cutting material: HW
- —Class-No. 107520 HL Board 10, hook angle 15°
- —Class-No. 102620/102628 HL Board 06, hook angle 10°
Advantages
- —optimum cutting quality, feed rate and adjustment for material thickness thanks to various numbers of teeth
- —noise-reduction thanks to laser ornaments from Ø 250 mm upwards
