SAW BLADES

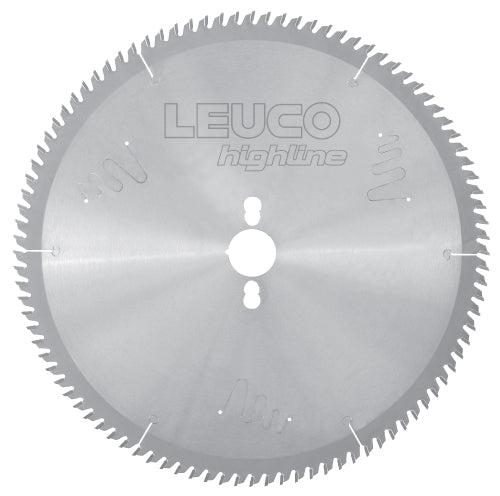

Highline Sizing Saw Blades with 38 Degree ATB
$134.54
● IN STOCK
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
LEUCO’S carbide sizing ATB sawblades are used for sizing cuts & trimming cuts in wood-based panels for table, chop, & miter saws. These blades provide chip-free cutting without using a scoring aggregate thanks to 38 degree ATB.
VENDOR: LEUCO Circular Saw Blades
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CIR 250 x 3.2 x 2.2 x 30 Z80 ATB | $134.54 | 189982 | In Stock |
| CIR 300 x 3.2 x 2.2 x 30 Z96 ATB | $167.68 | 189983 | In Stock |
Specifications for SKU: 189982
| Diameter - Outermost cutting point [mm] | 250 |
| Bore / shank diameter [mm] | 30 |
| Cutting width 1 [mm] | 3.2 |
| Clamping length [mm] | 2.2 |
| Pin holes [mm] | 2/7/42 + 2/9,5/46,5 + 2/10/60 |

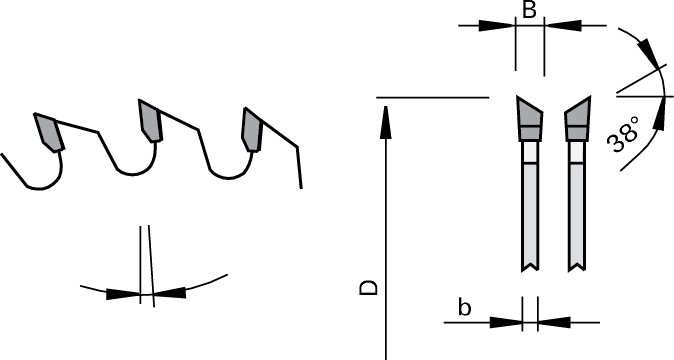

| Tooth configuration | Alternate top bevel [WS] |
| Number of teeth | 80 |
| Number of teeth diameter [mm] | 80 |
| Cutting material specification | HL Board 06 [B06] |
| Cutting material group | Tungsten carbide [HW] |
| Diameter max [mm] | 250 |
| Diameter [mm] | 250 |
| Cutting direction | Universal [UNI] |
| Type of feed | Universal [UNI] |
| Weight Kg | 0.816 |
| RPM max [min-1] | 7700 |
| Wedge angle [°] | 52 |
Application
- —for sizing and trimming cuts in wood-based panels
Machines
- —chop and miter saws
- —table saws
Design
- —tooth configuration: alternate top bevel "WS"
- —cutting material: HW HL Board 06
Advantages
- —chip-free cutting without using a scoring aggregate thanks to 38 degree ATB
- —noise-reduction thanks to laser ornaments
