SAW BLADES

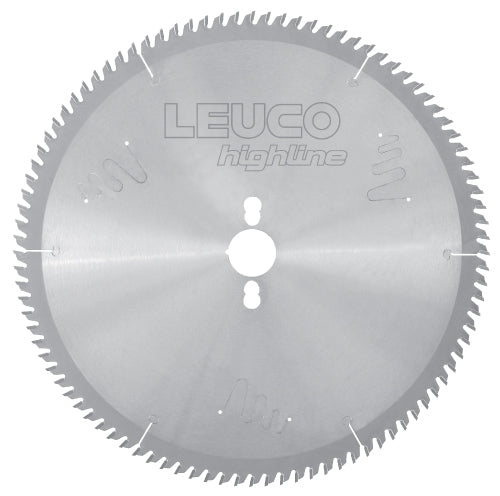

Highline Sizing Saw Blades with 5 Degree Hook Angle
$152.76
● IN STOCK
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
For sizing cuts in plastic laminated panels with a table or vertical panel sizing saw. The tooth configuration of triple chip flat & the noise reduction thanks to the laser ornament provides the longest edge life & optimum cutting quality. This blade provides an improved bottom edge & is accredited to the -5 degree hook angle. *Alteration of bore possible if needed.
VENDOR: LEUCO Circular Saw Blades
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CIR 250 x 3.2 x 2.2 x 30 Z80 TCG | $152.76 | 189988 | In Stock |
| CIR 300 x 3.2 x 2.2 x 30 Z96 TCG | $184.84 | 189989 | In Stock |
Specifications for SKU: 189988
| Diameter - Outermost cutting point [mm] | 250 |
| Bore / shank diameter [mm] | 30 |
| Cutting width 1 [mm] | 3.2 |
| Clamping length [mm] | 2.2 |
| Pin holes [mm] | 2/7/42 + 2/9,5/46,5 + 2/10/60 |
| Tooth configuration | Trapezzahn + Flachzahn [TR-F] |
| Number of teeth | 80 |
| Number of teeth diameter [mm] | 80 |
| Cutting material specification | HL Board 06 [B06] |
| Cutting material group | Tungsten carbide [HW] |
| Diameter max [mm] | 250 |
| Diameter [mm] | 250 |
| Cutting direction | Universal [UNI] |
| Type of feed | Universal [UNI] |
| Weight Kg | 0.819 |
| RPM max [min-1] | 7700 |
Application
- —for sizing cuts in plastic-laminated panels
Machines
- —table saws
- —vertical panel sizing saws
Design

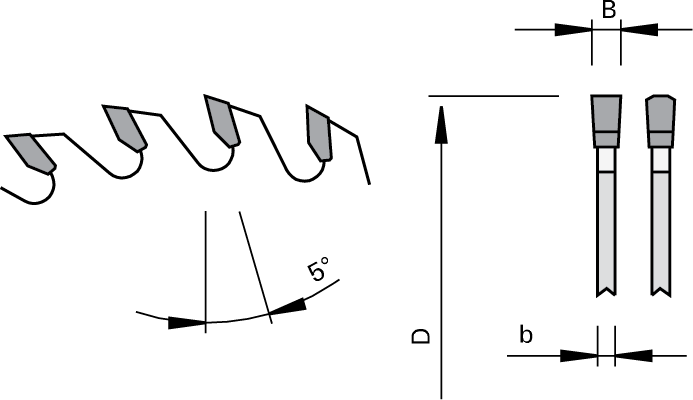

- —tooth configuration: triple chip / flat "TR-F"
- —cutting material: HW HL Board 06
Advantages
- —improved bottom edge (without scoring sawblade) thanks to 5 degree hook angle
- —noise-reduction thanks to laser ornaments
