SAW BLADES

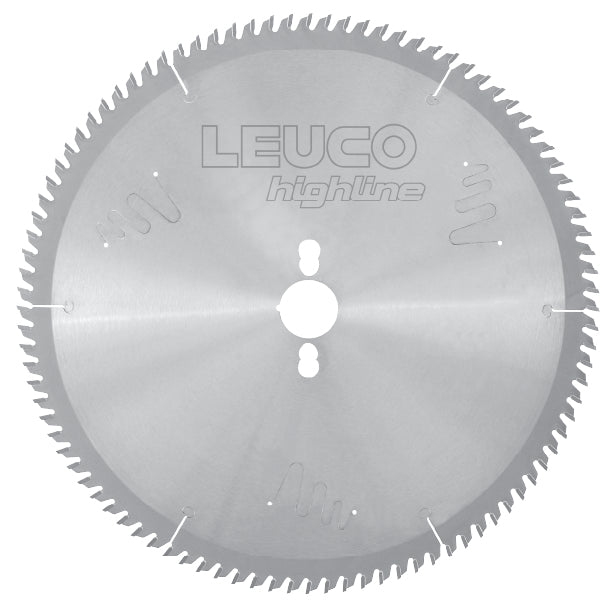

Highline Tungsten Carbide ATB Table & Miter Chop Saw Blade
$93.19
● IN STOCK
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
Table, chop, & miter saws are used for sizing cuts in solid woods, wood based panels, & laminated panels. The LEUCO design features a laser plate technology with tooth configurations in alternate top bevel (ATB), flat combo 4+1. LEUCO table & miter chop saws brings an advantage of optimum cut quality, extended edge life, & noise reduction thanks to laser ornaments. *Alteration of bore possible if needed except 8 ¼” Ø D
VENDOR: LEUCO Circular Saw Blades
Specifications
Specifications for SKU: 1738734

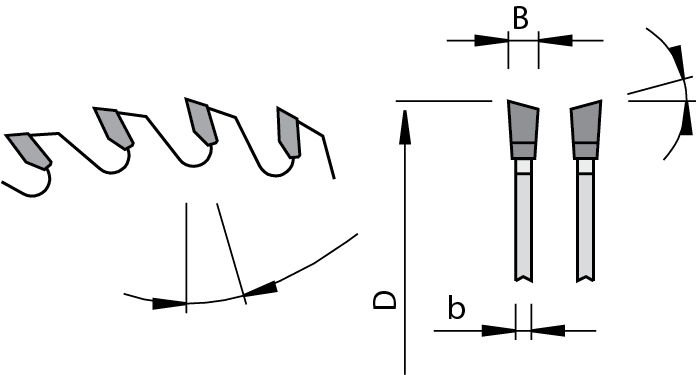

| Cutting Circle Diameter (Ø D) | 10" |
| Cut Width (B) | 3.2mm |
| Body Thickness (b) | 2.2mm |
| Bore Diameter (Ø d) | 5/8" |
| Number of Teeth (z) | 40 |
| Hook Angle | 20° |
| Tooth Shape | ATB |
All Sizes
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CIR 10 x 3.2 x 2.2 x 5/8 Z40 ATB 20 15 | $93.19 | 1738734 | In Stock |
| CIR 10 x 3.2 x 2.2 x 5/8 Z60 ATB 20 10 | $103.73 | 1738736 | In Stock |
| CIR 10 x 3.2 x 2.2 x 5/8 Z80 ATB 15 5 | $130.28 | 1738738 | In Stock |
| CIR 12 x 3.2 x 2.2 x 1 Z60 ATB 15 10 | $107.49 | 1738740 | In Stock |
| CIR 12 x 3.2 x 2.2 x 1 Z72 ATB 15 10 | $123.84 | 1738742 | In Stock |
| CIR 12 x 2.9 x 2.2 x 5/8 Z96 ATB 20 15 | $135.95 | 1738744 | In Stock |
| CIR 12 x 2.9 x 2.2 x 1 Z96 ATB 20 15 | $150.08 | 1739129 | In Stock |
| CIR 14 x 3.8 x 2.8 x 1 Z100 ATB 15 5 | $176.64 | 1738746 | In Stock |
Details
- Product Type
- Saw Blades
- Vendor
- LEUCO Circular Saw Blades
- Tags
- Chop & Miter SawsCircular Saw BladesTable SawsUS Inch Size Program
