SAW BLADES

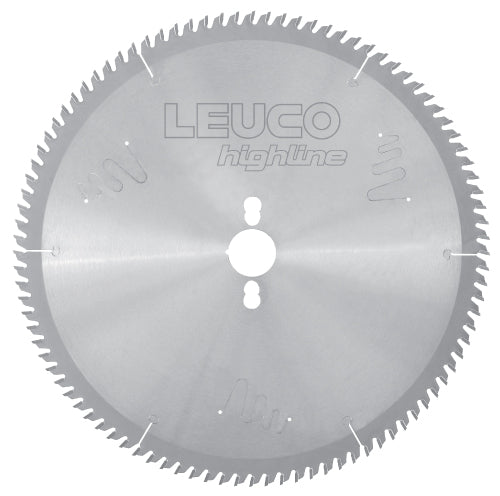

Highline Tungsten Carbide Table & Miter Chop Saw Blade
$94.29
● IN STOCK
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
Table, chop, & miter saws are used for sizing cuts in wood based panels, laminated panels, non-ferrous metals, solid surface, & heavy plastics. The LEUCO design features a laser plate technology with tooth configurations in triple chip, flat (Tr/Ch Flat), triple chip; flat w/chamfers or inverted v-hollowground. The LEUCO HL board 06 for carbide & 10 for non-ferrous metals bring optimum cutting quality & extended edge life. *Alteration of bore possible if needed
VENDOR: LEUCO Circular Saw Blades

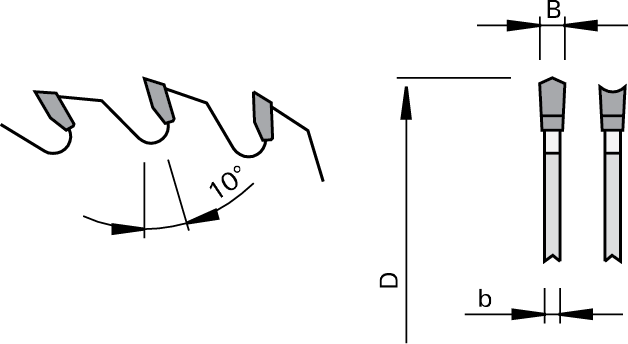

Specifications
Specifications for SKU: 1738766
| Cutting Circle Diameter (Ø D) | 10" |
| Cut Width (B) | 3.2mm |
| Body Thickness (b) | 2.2mm |
| Bore Diameter (Ø d) | 5/8" |
| Number of Teeth (z) | 40 |
| Hook Angle | 5° |
All Sizes
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CIR 10 x 3.2 x 2.2 x 5/8 Z40 5 | $94.29 | 1738766 | In Stock |
| CIR 10 x 3.2 x 2.2 x 5/8 Z60 5 | $107.49 | 1738768 | In Stock |
| CIR 10 x 3.2 x 2.2 x 5/8 Z80 5 | $130.31 | 1738770 | In Stock |
| CIR 12 x 3.2 x 2.2 x 1 Z60 10 | $109.56 | 1738772 | In Stock |
| CIR 12 x 3.2 x 2.2 x 1 Z72 10 | $125.24 | 1738774 | In Stock |
| CIR 12 x 3.5 x 2.2 x 1 Z80 5 | $122.72 | 1740022 | In Stock |
| CIR 14 x 3.8 x 2.8 x 1 Z100 10 | $178.05 | 1738776 | In Stock |
| CIR 14 x 3.5 x 2.2 x 1 Z80 5 | $127.93 | 1740024 | In Stock |
Details
- Product Type
- Saw Blades
- Vendor
- LEUCO Circular Saw Blades
- Tags
- Chop & Miter SawsCircular Saw BladesTable SawsUS Inch Size Program
