SAW BLADES

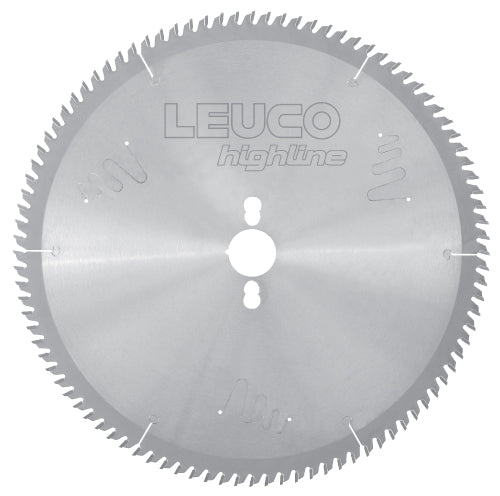

Highline Tungsten Carbide Table & Miter Chop Saw Blade for Non-Ferrous Metal
$146.32
● IN STOCK
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
Table, chop, & miter saws are used for sizing cuts in wood based panels, laminated panels, non-ferrous metals, solid surface, & heavy plastics. The LEUCO design features a laser plate technology with tooth configurations in triple chip, flat (Tr/Ch Flat), triple chip; flat w/chamfers or inverted v-hollowground. The LEUCO HL board 06 for carbide & 10 for non-ferrous metals bring optimum cutting quality & extended edge life. *Alteration of bore possible if needed
VENDOR: LEUCO Circular Saw Blades
Specifications
Specifications for SKU: 1740030

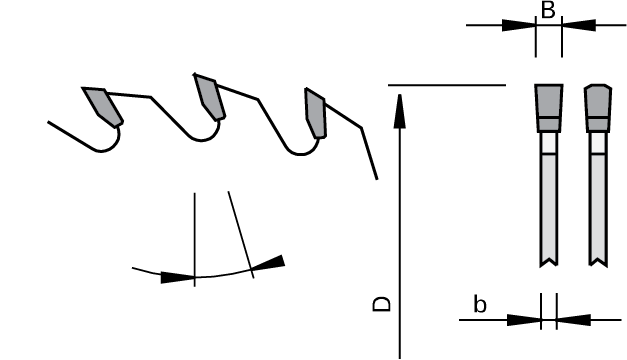

| Cutting Circle Diameter (Ø D) | 10" |
| Cut Width (B) | 3mm |
| Body Thickness (b) | 2.2mm |
| Bore Diameter (Ø d) | 5/8" |
| Number of Teeth (z) | 80 |
| Hook Angle | -5° |
All Sizes
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CIR 10 x 3 x 2.2 x 5/8 Z80 -5 | $146.32 | 1740030 | In Stock |
| CIR 10 x 3.2 x 2.2 x 1 Z100 -5 | $210.04 | 1740624 | In Stock |
| CIR 12 x 3.2 x 2.2 x 1 Z100 -5 | $163.76 | 1740032 | In Stock |
| CIR 14 x 3.2 x 2.2 x 1 Z100 -5 | $159.51 | 1740034 | In Stock |
