KNIVES AND INSERTS
Solid Carbide Mini Turnover Knives With 2 Cutting Edges
$50.34
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
Replacement knives with two cutting edges for use in shank type cutters running on stationary CNC’s and point-to-point machines. LEUCO provides a superior carbide grade for wood-based panels, plastics, and hard woods providing long edge life and optimum cutting quality.
VENDOR: LEUCO Knives and Inserts
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| KNI 12 x 5.5 x 1.1 | $50.34 | 162670 | |
| KNI 20 x 5.5 x 1.1 | $78.76 | 160623 | |
| KNI 40 x 5.5 x 1.1 | $77.00 | 160674 | |
| KNI 50 x 5.5 x 1.1 | $75.57 | 163572 |

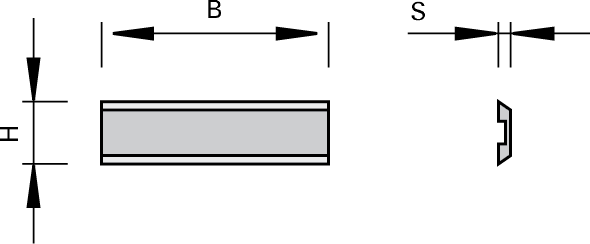

Specifications for SKU: 162670
| Cutting width 1 [mm] | 12 |
| Thickness [mm] | 1.1 |
| Cutting material specification | HL Board 05 [B05] |
| Cutting material group | Tungsten carbide [HW] |
| Cutting direction | Steel [ST] |
| Height [mm] | 5.5 |
| Type | 1 |
| Wedge angle [°] | 55 |
Application
- —for use in shank-type cutterheads
Design
- —cutting material: HW
- —HL Board 05 for wood-based panels, plastics and hard woods
- Product Type
- Knives and Inserts
- Vendor
- LEUCO Knives and Inserts
- Tags
- Knives and InsertsSolid Carbide Turnover KnivesTurnover Straight Knives
