KNIVES AND INSERTS

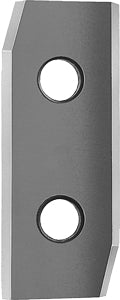

Solid Carbide Turnover Knives With 2 Cutting Edges & Chamfer
$187.16
● IN STOCK
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
Replacement knives with two cutting edges with chamfer for use in edgebanding / jointing cutterheads on Holz-Her machines. Grinding angle at 55 degrees with a carbide grade for wood-based panels, plastics, and hard woods.
VENDOR: LEUCO Knives and Inserts

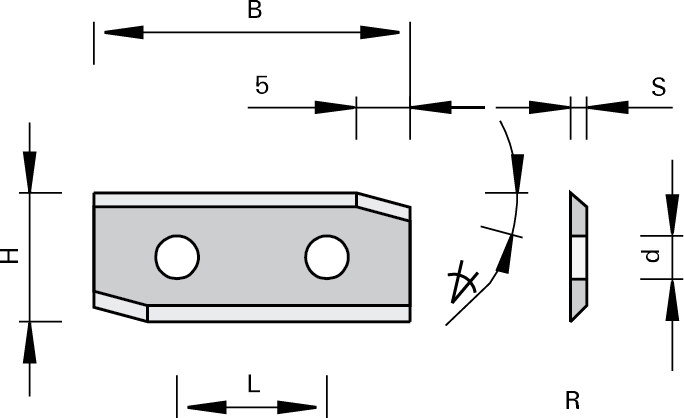

Specifications for SKU: 160118
| Bore / shank diameter [mm] | 4 |
| Cutting width 1 [mm] | 29.5 |
| Thickness [mm] | 1.5 |
| Bore distance [mm] | 14 |
| Cutting material specification | HL Board 06 [B06] |
| Cutting material group | Tungsten carbide [HW] |
| Cutting direction | Left-hand rotation [LH] |
| Bevel angle 1 [°] | 15 |
| Height [mm] | 12 |
| Type | 1 |
| Wedge angle [°] | 55 |
| Cutting material specification | TC06 [TC06] |
Application
- —for use in edge banding / jointing cutterheads
Machines
- —machines HOLZ-HER
Design
- —grinding angle 55 degrees
- —cutting material: HW
- —HL Board 06 for wood-based panels, plastics and hard woods
