KNIVES AND INSERTS
Solid Carbide Turnover Knives With 2 Cutting Edges For HL Board 06 (10/pcs)
$45.50
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
Replacement knives with two cutting edges for cutters with bore and shank type cutters running on through-feed machines including double-end tenoners and edge banders and stationary CNC’s and point-to-point machines. LEUCO provides various carbide grades for multiple applications and long edge life and optimum cutting quality in solid woods and panel products.
VENDOR: LEUCO Knives and Inserts
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| KNI 20 x 12 x 1.5 HLB 06 | $45.50 | 178287 | |
| KNI 30 x 12 x 1.5 HLB 06 | $50.34 | 178288 | |
| KNI 50 x 12 x 1.5 HLB 06 | $91.10 | 178289 | |
| KNI 80 x 12 x 2.2 HLB 06 | $466.64 | 3087 | |
| KNI 100 x 13 x 2.2 HLB 06 | $539.13 | 3088 | In Stock |
| KNI 120 x 13 x 2.2 HLB 06 | $523.48 | 3089 |

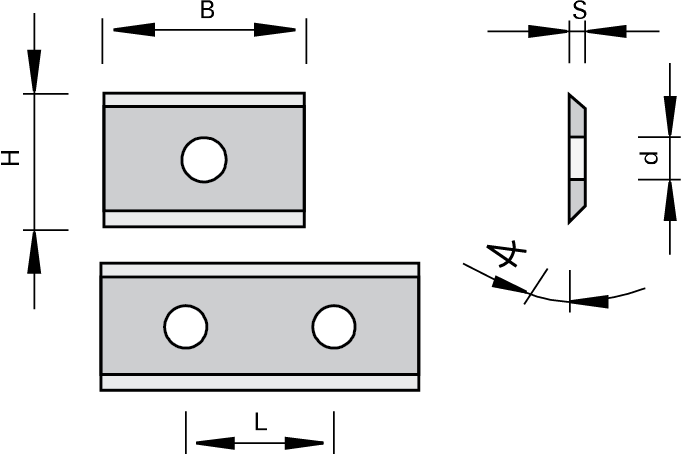

Specifications for SKU: 178287
| Bore / shank diameter [mm] | 4 |
| Cutting width 1 [mm] | 20 |
| Clamping length [mm] | 4 |
| Thickness [mm] | 1.5 |
| Total length | 20 |
| Cutting material specification | HL Board 06 [B06] |
| Cutting material group | Tungsten carbide [HW] |
| Cutting direction | Steel [ST] |
| Weight Kg | 0.01 |
| Clamping length [mm] | 4 |
| Height [mm] | 12 |
| Wedge angle [°] | 55 |
Design
- —topline (polished face and micro-ground clearance angle)
- —cutting material: HW
- —HW HL Board 01 for wood-based panels and plastics
- —HW HL Board 02 for wood-based panels and plastics
- —HL Board 06 for wood-based panels, plastics, hard and soft woods
- —HL Board 05 for wood-based panels, plastics and hard woods
- —HL Solid 20 for hard and soft woods
- —HL Solid 20 topline for hard and soft woods
Advantages
- —long edge lives and optimum cutting quality in solid woods
- —EcoKnife: turnover knife with less weight, less unbalance
