Solid Carbide Turnover Knives With 4 Cutting Edges & Countersink For HL Board 03
KNIVES AND INSERTS

Solid Carbide Turnover Knives With 4 Cutting Edges & Countersink For HL Board 03

$50.34
● IN STOCK

Confused about compatibility?

Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.

Description

Replacement knives with four cutting edges and countersink for cutters with bore and shank type cutters running on through-feed machines including double-end tenoners and edge banders and stationary CNC’s and point-to-point machines. LEUCO provides various carbide grades for multiple applications and long edge life and optimum cutting quality in solid woods and panel products.

VENDOR: LEUCO Knives and Inserts

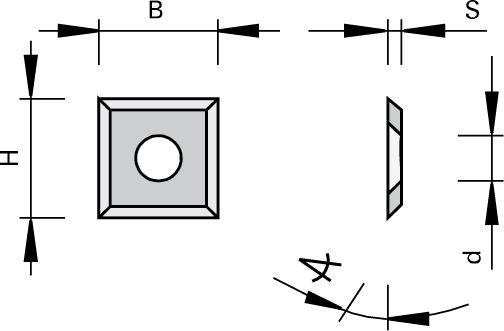

Specifications for SKU: 180646

Bore / shank diameter [mm]6.3
Cutting width 1 [mm]14
Thickness [mm]2
Cutting material specificationHL Board 03 [B03]
Cutting material groupTungsten carbide [HW]
Cutting directionSteel [ST]
Weight Kg0
RPM max [min-1]0
RPM min [min-1]0
Height [mm]14
Type1
Wedge angle [°]60
