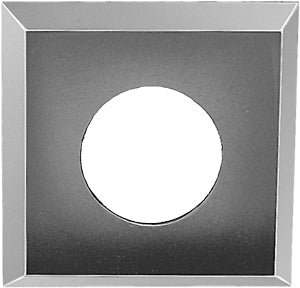

Solid Carbide Turnover Knives With 4 Cutting Edges & Countersink For HL Solid 30
$109.70
● IN STOCK
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
Replacement knives with four cutting edges and countersink for cutters with bore and shank type cutters running on through-feed machines including double-end tenoners and edge banders and stationary CNC’s and point-to-point machines. LEUCO provides various carbide grades for multiple applications and long edge life and optimum cutting quality in solid woods and panel products.
VENDOR: LEUCO Knives and Inserts
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| KNI 13.6 x 13.6 x 2 HLS 30 | $109.70 | 163829 | In Stock |
| KNI 14 x 14 x 1.2 HLS 30 | $38.10 | 163701 | In Stock |
| KNI 14 x 14 x 1.2 HLS 30 HOLZ-HER | $87.00 | 167777 | In Stock |
| KNI 14 x 14 x 2 HLS 30 | $86.10 | 3079 | In Stock |

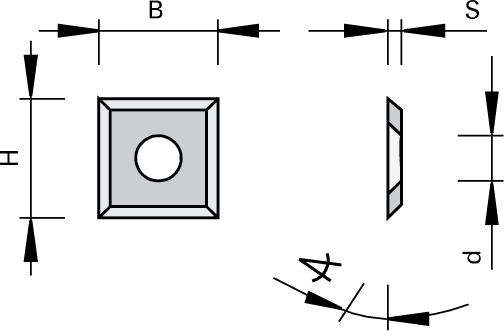

Specifications for SKU: 163829
| Bore / shank diameter [mm] | 6.3 |
| Cutting width 1 [mm] | 13.6 |
| Thickness [mm] | 2 |
| Cutting material specification | HL Solid 30 [S30] |
| Cutting material group | Tungsten carbide [HW] |
| Cutting direction | Steel [ST] |
| Height [mm] | 13.6 |
| Type | 3 |
| Wedge angle [°] | 45 |
| Cutting material specification | TCw30 [TCW30] |
Application
- —for the use as flat scraper on Homag edge banding machines FA20 + FA21
- —for use in edge jointing cutterheads
- —for use in spiral cutterheads
- —for use in cutterheads
Machines
- —machines Homag, Fischer Brugg, IMA, Weinig, Lestro, HOLZ-HER
Design
- —topline (polished face and micro-ground clearance angle)
