KNIVES AND INSERTS

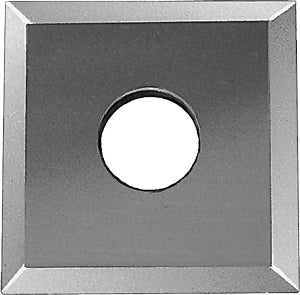

Solid Carbide Turnover Knives With 4 Cutting Edges for HL Solid 25 Topline
$110.05
● IN STOCK
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
Replacement knives with four cutting edges for cutters with bore and shank type cutters running on through-feed machines including double-end tenoners and edge banders and stationary CNC’s and point-to-point machines. LEUCO provides various carbide grades for multiple applications and long edge life and optimum cutting quality in solid woods and panel products.
VENDOR: LEUCO Knives and Inserts

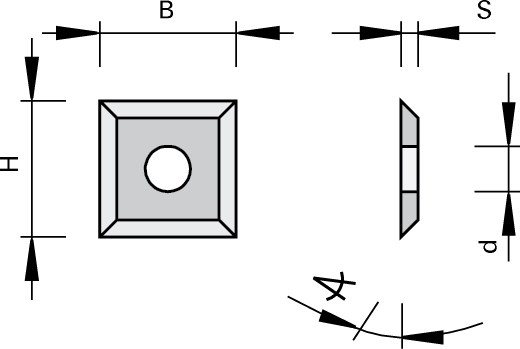

Specifications for SKU: 176340
| Bore / shank diameter [mm] | 4 |
| Cutting width 1 [mm] | 12 |
| Thickness [mm] | 1.5 |
| Total length | 12 |
| Cutting material specification | HL Solid 20 [S20] |
| Cutting material group | Tungsten carbide [HW] |
| Cutting direction | Steel [ST] |
| Height [mm] | 12 |
| Quality | topline [TL] |
| Wedge angle [°] | 45 |
Design
- —topline (polished face and micro-ground clearance angle)
- —cutting material: HW
- —HL Board 03 for wood-based panels and plastics
- —HL Board 05 for wood-based panels, plastics and hard woods
- —HL Board 06 for wood-based panels, plastics, hard and soft woods
- —HL Solid 20 topline for hard and soft woods
Advantages
- —long edge lives and optimum cutting quality in solid woods
