Solid Tungsten Carbide 2 Flute 100mm Mosquito Through-Hole Bit
BORING TOOLS

Solid Tungsten Carbide 2 Flute 100mm Mosquito Through-Hole Bit

$66.96

Confused about compatibility?

Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.

Description

Drill bits with low cutting pressure and good chip removal are recommended for drilling processes such as dowels and through-holes. The LEUCO Mosquito bits provide chip-free drilling of through-holes in solid woods and wood-based panels on CNC machining centers, automatic and portable boring machines. These bits are designed with a solid carbide body and a special cutting-edge geometry and feature a boring part made from fine grain solid tungsten carbide. The solid carbide design brings high feed rates and edge life increases up to six times compared to traditional dowel bits.

VENDOR: LEUCO Boring Tools

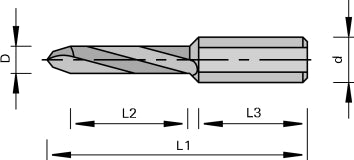

Specifications for SKU: 184289

Diameter - Outermost cutting point [mm]6
Bore / shank diameter [mm]10
Clamping length [mm]50
Number of teeth2
Number of teeth diameter [mm]2
Total length100
Cutting material groupSolid tungsten carbide [VHW]
Diameter max [mm]6
Diameter [mm]6
Cutting directionRight-hand rotation [RH]
Type of feedManual feed [MAN]
Axial working depth 1 [mm]35
Weight Kg0.02
RPM max [min-1]7500
Clamping length [mm]35
