Solid Tungsten Carbide 2 Flute 57.5mm Mosquito Dowel Bit
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
The LEUCO Mosquito dowel bits provide chip-free drilling of dowel holes in solid woods and wood-based panels on CNC machining centers, automatic and portable boring machines. The tungsten solid carbide drills are designed with a special cutting-edge geometry and two spurs with centering point to provide chip-free hole edges and safe drilling. The tool life is increased by up to six times compared to traditional dowel bits thanks to the solid carbide design and provide high feed rates. LEUCO Mosquito drills provide optimal cutting solutions with consistent quality of processing panels efficiently, chip-free.
VENDOR: LEUCO Boring Tools
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| BOR 3 x 10 x 9 x 57.5 RH | $35.00 | 183142 | |
| BOR 3 x 10 x 9 x 57.5 LH | $35.00 | 183143 | |
| BOR 3 x 10 x 18 x 57.5 RH | $36.77 | 182380 | In Stock |
| BOR 3 x 10 x 18 x 57.5 LH | $36.77 | 182381 | In Stock |
| BOR 4 x 10 x 20 x 57.5 RH | $39.92 | 182382 | |
| BOR 4 x 10 x 20 x 57.5 LH | $39.92 | 182383 | |
| BOR 5 x 10 x 22 x 57.5 RH | $42.58 | 182384 | |
| BOR 5 x 10 x 22 x 57.5 LH | $42.58 | 182385 | In Stock |

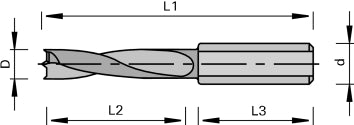

Specifications for SKU: 183142
| Diameter - Outermost cutting point [mm] | 3 |
| Bore / shank diameter [mm] | 10 |
| Clamping length [mm] | 35 |
| Number of teeth | 2+2 |
| Number of teeth diameter [mm] | 2 |
| Total length | 57.5 |
| Cutting material group | Solid tungsten carbide [VHW] |
| Diameter max [mm] | 3 |
| Diameter [mm] | 3 |
| Cutting direction | Right-hand rotation [RH] |
| Type of feed | Manual feed [MAN] |
| Axial working depth 1 [mm] | 9 |
| Weight Kg | 0.07 |
| RPM max [min-1] | 10000 |
Application
- —for chip-free drilling of dowel holes in solid woods and wood-based panels
Machines
- —portable boring machines
- —automatic boring machines
- —CNC machining centers
Design
- —special cutting edge geometry
- —2 spurs
- —centering point
- —boring part made from fine-grain solid tungsten carbide
Advantages
- —chip-free hole edges thanks to special cutting edge geometry with spurs
- —safe drilling thanks to centering point
- —high feed rates and edge lives increased up to sixfold compared to traditional dowel bits thanks to solid carbide design
- —high process safety thanks to constant quality of the bores for a long time
