Solid Tungsten Carbide 2 Flute 70mm Mosquito Through-Hole Bit
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
Drill bits with low cutting pressure and good chip removal are recommended for drilling processes such as dowels and through-holes. The LEUCO Mosquito bits provide chip-free drilling of through-holes in solid woods and wood-based panels on CNC machining centers, automatic and portable boring machines. These bits are designed with a solid carbide body and a special cutting-edge geometry and feature a boring part made from fine grain solid tungsten carbide. The solid carbide design brings high feed rates and edge life increases up to six times compared to traditional dowel bits.
VENDOR: LEUCO Boring Tools
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| BOR 3 x 10 x 27 x 70 RH | $54.34 | 183686 | In Stock |
| BOR 3 x 10 x 27 x 70 LH | $45.59 | 183687 | In Stock |
| BOR 4 x 10 x 35 x 70 RH | $51.38 | 183166 | |
| BOR 4 x 10 x 35 x 70 LH | $52.84 | 183167 | |
| BOR 5 x 10 x 35 x 70 RH | $50.40 | 183152 | In Stock |
| BOR 5 x 10 x 35 x 70 LH | $50.40 | 183153 | In Stock |
| BOR 6 x 10 x 35 x 70 RH | $62.97 | 183154 | |
| BOR 6 x 10 x 35 x 70 LH | $62.97 | 183155 | |
| BOR 8 x 10 x 35 x 70 RH | $89.89 | 183156 | In Stock |
| BOR 8 x 10 x 35 x 70 LH | $89.89 | 183157 | In Stock |

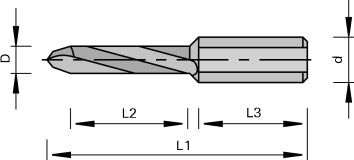

Specifications for SKU: 183686
| Diameter - Outermost cutting point [mm] | 3 |
| Bore / shank diameter [mm] | 10 |
| Clamping length [mm] | 30 |
| Number of teeth | 2 |
| Number of teeth diameter [mm] | 2 |
| Interface towards the machine | Bore [BO] |
| Total length | 70 |
| Cutting material group | Solid tungsten carbide [VHW] |
| Diameter max [mm] | 3 |
| Diameter [mm] | 3 |
| Cutting direction | Right-hand rotation [RH] |
| Type of feed | Manual feed [MAN] |
| Axial working depth 1 [mm] | 27 |
| Total length 1 [mm] | 70 |
| Weight Kg | 0.02 |
| RPM max [min-1] | 10000 |
Application
- —for chip-free drilling of through-holes in solid woods and wood-based panels
Machines
- —portable boring machines
- —automatic boring machines
- —CNC machining centers
Design
- —special cutting edge geometry
- —boring part made from fine-grain solid tungsten carbide
Advantages
- —chip-free hole edges thanks to special cutting edge geometry
- —high feed rates and edge lives increased up to sixfold compared to traditional dowel bits thanks to solid carbide design
- —high process safety thanks to constant quality of the bores for a long time
