SAW BLADES

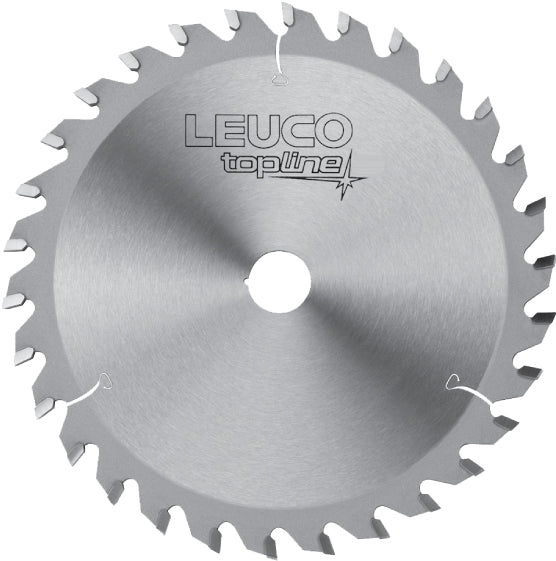

Topline Scoring Saw Blades for Use with Q-Cut G5 Panel Sizing Saw Blades
$245.10
● IN STOCK
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
These high-quality conical scoring saw blades are perfectly matched for use with LEUCO Q-Cut G5 panel sizing blades for scoring of plastic-laminated panels. These conical scoring blades provide optimum cutting quality thanks to improved runout accuracy. They are height adjustable to kerf of main saw blade with an optimum scoring depth 1.0-2.0mm
VENDOR: LEUCO Circular Saw Blades
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CIR 180 x 4.05-4.85 x 45 Z36 | $245.10 | 192756 | In Stock |
| CIR 180 x 4.05-4.85 x 50 Z36 | $232.75 | 192757 | In Stock |
| CIR 200 x 4.05-4.85 x 20 Z36 | $212.35 | 192758 | In Stock |
| CIR 200 x 4.05-4.85 x 45 Z36 | $196.05 | 192760 | In Stock |
Specifications for SKU: 192756
| Diameter - Outermost cutting point [mm] | 180 |
| Bore / shank diameter [mm] | 45 |
| Clamping length [mm] | 3.2 |
| Tooth configuration | Konisch-Wechslzahn [KO-WS] |
| Number of teeth | 36 |
| Number of teeth diameter [mm] | 36 |
| Cutting material specification | HL Board 04 [B04] |
| Cutting material group | Tungsten carbide [HW] |
| Diameter max [mm] | 180 |
| Diameter [mm] | 180 |
| Cutting direction | Universal [UNI] |
| Type of feed | Universal [UNI] |
| Weight Kg | 0.68 |
| RPM max [min-1] | 10700 |
| Cutting width 1 max [mm] | 4.85 |
| Cutting width 1 min [mm] | 4.05 |
Application
- —for scoring of plastic-laminated panels
Machines
- —panel sizing saws with scoring device
Design

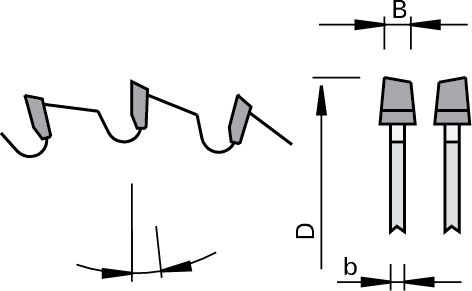

- —tooth configuration: conical / alternate top bevel "KO-WS"
- —cutting material: HW HL Board 04 plus
Advantages
- —low motor output thanks to tooth configuration "KO-WS"
- —for longer edge lives compared to HL Board 03 plus
- —optimum cutting quality thanks to improved runout accuracy
- —reduction of the scoring depth
