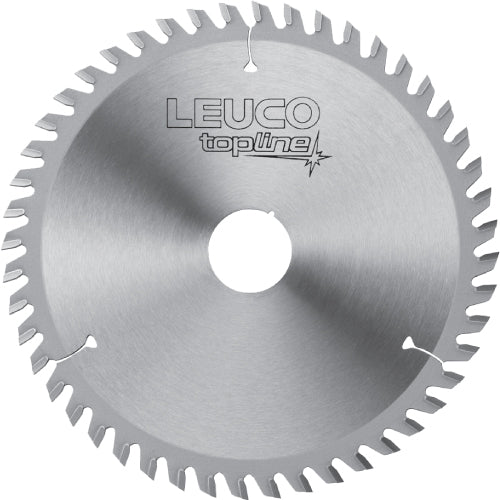

Topline Scoring Saw Blades with Alternate Top Bevel Teeth for Plastic Laminated Postforming Panels
$322.43
● IN STOCK
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
For scoring of plastic-laminated postforming panels with panel sizing saws, you will want the best match up to your main panel saw. These score saws have a tooth configuration of alternate top bevel “WS”. These LEUCO Topline branded score saws are provide an excellent cut quality for lasting performance.
VENDOR: LEUCO Circular Saw Blades
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CIR 250 x 4.55/3.5 x 30 Z48 | $322.43 | 181999 | In Stock |
| CIR 280 x 4.55/3.5 x 45 Z84 | $325.76 | 189324 | In Stock |
| CIR 280 x 5.0/3.5 x 45 Z84 | $321.40 | 182081 | In Stock |
| CIR 340 x 5.0/3.5 x 45.Z48 | $310.10 | 188500 | In Stock |
| CIR 340 x 5.0/3.5 x 45 Z108 | $446.36 | 188501 | In Stock |
Specifications for SKU: 181999
| Diameter - Outermost cutting point [mm] | 250 |
| Bore / shank diameter [mm] | 30 |
| Cutting width 1 [mm] | 4.55 |
| Clamping length [mm] | 3.5 |
| Pin holes [mm] | 2/10/60 |
| Tooth configuration | Alternate top bevel [WS] |
| Number of teeth | 48 |
| Number of teeth diameter [mm] | 48 |
| Cutting material specification | HL Board 06 [B06] |
| Cutting material group | Tungsten carbide [HW] |
| Diameter max [mm] | 250 |
| Diameter [mm] | 250 |
| Cutting direction | Universal [UNI] |
| Type of feed | Universal [UNI] |
| Weight Kg | 1.45 |
| RPM max [min-1] | 7700 |
| Wedge angle [°] | 75 |
| Corner angle | 15 |
Application
- —for scoring of plastic-laminated postforming panels
Machines
- —panel sizing saws with controllable scoring device
Design

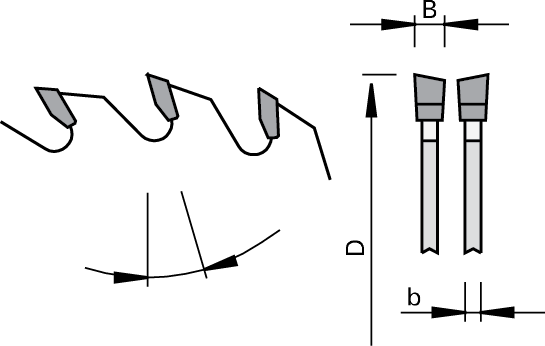

- —tooth configuration: alternate top bevel "WS"
- —cutting material: HW HL Board 06
