SAW BLADES
Topline Sizing Saw Blades with Thin Kerf for Solid Wood
$107.33
● IN STOCK
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
For sizing cuts in thin kerf-wood based panels or clipping cuts in solid woods. The alternate top bevel tooth configuration of these blades bring optimum cutting quality with several sizes available for your application.
VENDOR: LEUCO Circular Saw Blades
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CIR 180 x 2.4 x 1.8 x 30 Z30 | $107.33 | 188064 | In Stock |
| CIR 200 x 2.4 x 1.8 x 30 Z32 WS | $99.94 | 188065 | In Stock |
| CIR 250 x 2.4 x 1.8 x 30 Z40 ATB | $120.23 | 188067 | In Stock |
| CIR 300 x 2.4 x 1.8 x 30 Z48 WS | $138.77 | 188068 | In Stock |
| CIR 350 x 2.6 x 2.0 x 30 NL Z54 | $186.70 | 188069 | In Stock |
Specifications for SKU: 188064
| Diameter - Outermost cutting point [mm] | 180 |
| Bore / shank diameter [mm] | 30 |
| Cutting width 1 [mm] | 2.4 |
| Clamping length [mm] | 1.8 |
| Tooth configuration | Alternate top bevel [WS] |
| Number of teeth | 30 |
| Number of teeth diameter [mm] | 30 |
| Cutting material specification | HL Board 06 [B06] |
| Cutting material group | Tungsten carbide [HW] |
| Diameter max [mm] | 180 |
| Diameter [mm] | 180 |
| Cutting direction | Universal [UNI] |
| Type of feed | Universal [UNI] |
| Weight Kg | 0.366 |
| RPM max [min-1] | 10700 |
| Corner angle | 10 |
Application
- —for sizing and clipping cuts in solid woods
Machines
- —table saws
- —sizing saws
- —cut-off saws
Design

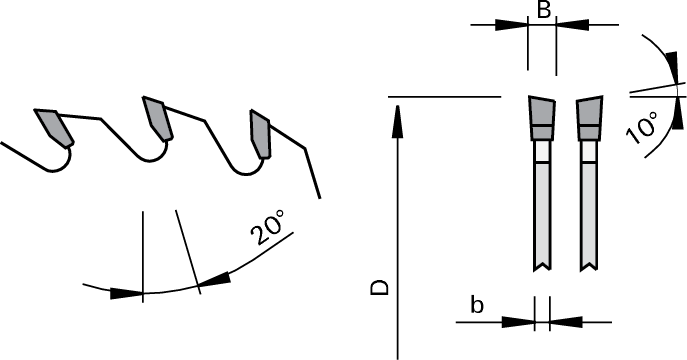

- —tooth configuration: alternate top bevel "WS"
- —cutting material: HW HL Board 06
- Product Type
- Saw Blades
- Vendor
- LEUCO Circular Saw Blades
- Tags
- Circular Saw BladesCut-off SawsSizing Saw BladesTable Saws
