SAW BLADES
Topline Sizing Saw Blades with Thin Rim
$284.57
● IN STOCK
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
For sizing cuts in thin-walled plastic profiles & veneers we recommend these Carbide Sizing Sawblades ATB Thin Rim design. The extra thin rim design of the steel plate provides the highest cutting quality cuts, & longest edge life
VENDOR: LEUCO Circular Saw Blades
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CIR 160 x 1.8 x 2.2 x 16 Z48 | $284.57 | 188209 | In Stock |
| CIR 180 x 1.6 x 2.2 x 16 Z56 ATB | $303.39 | 188210 | In Stock |
| CIR 250 x 1.7 x 2.2 x 30 Z80 ATB | $343.16 | 188211 | In Stock |
Specifications for SKU: 188209
| Diameter - Outermost cutting point [mm] | 160 |
| Bore / shank diameter [mm] | 16 |
| Cutting width 1 [mm] | 1.8 |
| Clamping length [mm] | 2.2 |
| Pin holes [mm] | 2/7,5/31,5 |

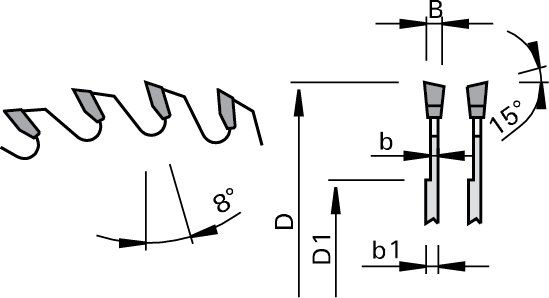

| Tooth configuration | Alternate top bevel [WS] |
| Number of teeth | 48 |
| Number of teeth diameter [mm] | 36 |
| Cutting material specification | HL Board 06 [B06] |
| Cutting material group | Tungsten carbide [HW] |
| Body thickness reduced | 1 |
| Hub diameter [mm] | 80 |
| Diameter max [mm] | 160 |
| Diameter [mm] | 160 |
| Cutting direction | Universal [UNI] |
| Type of feed | Universal [UNI] |
| Weight Kg | 0.2 |
| RPM max [min-1] | 12000 |
| Corner angle | 15 |
Application
- —for sizing cuts in thin-walled plastic profiles and veneers
Machines
- —table saws
- —machines Scheer FM
Design
- —extra thin rim design of the steel plate
- —tooth configuration: alternate top bevel "WS"
- —cutting material: HW HL Board 06
Advantages
- —improved stability thanks to relieved tool body
