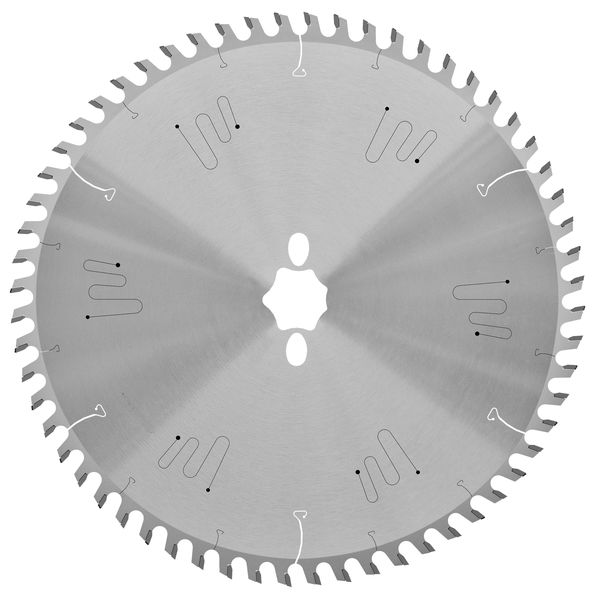

Topline Tungsten Carbide Sizing Hollow Ground Saw Blade with DA-F Tooth Geometry - Easy Fix
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
easyFix: NEW, EASY HANDLING, easy and smooth mounting of the saw blade on the machine despite high-precision bore tolerance
extremely low-noise and smooth running thanks to vibration and noise damping ornaments as well as special expansion slot combinations
Full details, features, and machine fit are under Details below.
VENDOR: LEUCO Circular Saw Blades
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CIR 250 x 3.2 x 2.2 x 30 Z48 10 "Hollow Ground" | $267.17 | 193327 | In Stock |
| CIR 303 x 3.2 x 2.2 x 30 Z60 10 "Hollow Ground" Extremely Straight Steel Plate | $385.16 | 193335 | In Stock |
| CIR 303 x 3.2 x 2.2 x 30 Z60 10 "Hollow Ground" | $312.26 | 193328 | In Stock |
Specifications for SKU: 193327
| Diameter - Outermost cutting point [mm] | 250 |
| Bore / shank diameter [mm] | 30 |
| Cutting width 1 [mm] | 3.2 |
| Clamping length [mm] | 2.2 |
| Pin holes [mm] | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 |
| Tooth configuration | Dachzahn + Flachzahn Duplovit [DA-F_DU] |
| Number of teeth | 48 |
| Number of teeth diameter [mm] | 48 |
| Cutting material specification | HL Board 06 [B06] |
| Cutting material group | Tungsten carbide [HW] |
| Diameter max [mm] | 250 |
| Diameter [mm] | 250 |
| Cutting direction | Universal [UNI] |
| Type of feed | Universal [UNI] |
| Weight Kg | 0.757 |
| RPM max [min-1] | 7700 |
Application
- —for sizing cuts
Machines
- —table saws
- —vertical panel sizing saws
Design
- —vibration and noise damping ornaments
- —cutting material: HL Board 06, HL Board 03 and HL Board 04 plus
Advantages
- —easyFix: NEW, EASY HANDLING, easy and smooth mounting of the saw blade on the machine despite high-precision bore tolerance
- —extremely low-noise and smooth running thanks to vibration and noise damping ornaments as well as special expansion slot combinations
easyFix: NEW, EASY HANDLING, easy and smooth mounting of the saw blade on the machine despite high-precision bore tolerance
extremely low-noise and smooth running thanks to vibration and noise damping ornaments as well as special expansion slot combinations
Ident-No. 193335: extremely straight steel plate for Striebig panel sizing saws with scoring device
