SAW BLADES

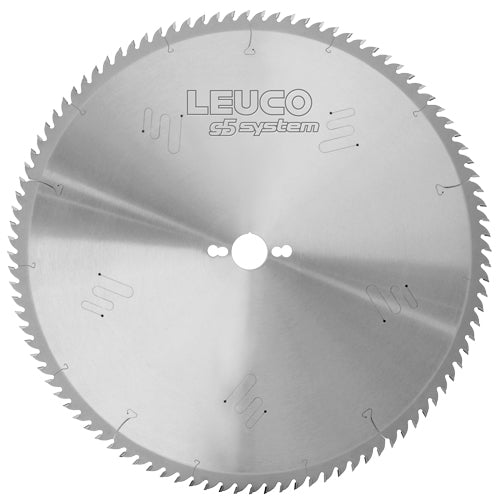

Topline Tungsten Carbide Sizing Saw Blade for HL Board 04 Plus
$181.63
● IN STOCK
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
LEUCO sizing blades for sizing cuts with vertical panel sizing saws & table saws showcase an extremely low-noise & smooth running thanks to vibration & noise damping ornaments as well as special expansion slot combinations. For each application, consider the correct tooth form/geometry for the perfect cut, every time.
VENDOR: LEUCO Circular Saw Blades
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CIR 220 x 3.2 x 2.2 x 30 Z36 ATB | $181.63 | 189664 | In Stock |
| CIR 250 x 3.2 x 2.2 x 60 Z40 ATB | $150.17 | 189667 | In Stock |
| CIR 300 x 3.2 x 2.2 x 30 Z48 ATB | $164.96 | 189668 | In Stock |
| CIR 300 x 3.2 x 2.2 x 30 Z60 ATB | $198.21 | 189669 | In Stock |
| CIR 300 x 3.2 x 2.2 x 60 Z48 | $223.71 | 188185 | In Stock |
| CIR 350 x 3.5 x 2.5 x 30 Z54 ATB | $181.03 | 189670 | In Stock |
| CIR 350 x 3.5 x 2.5 x 30 Z72 ATB | $264.51 | 189671 | In Stock |
| CIR 400 x 3.5 x 2.5 x 30 Z60 ATB | $258.34 | 189672 | In Stock |
| CIR 400 x 3.5 x 2.5 x 30 Z84 ATB | $326.96 | 189673 | In Stock |
Specifications for SKU: 189664
| Diameter - Outermost cutting point [mm] | 220 |
| Bore / shank diameter [mm] | 30 |
| Cutting width 1 [mm] | 3.2 |
| Clamping length [mm] | 2.2 |
| Pin holes [mm] | 2/7/42 |
| Tooth configuration | Alternate top bevel [WS] |
| Number of teeth | 36 |
| Number of teeth diameter [mm] | 36 |
| Cutting material specification | HL Board 06 [B06] |
| Cutting material group | Tungsten carbide [HW] |
| Diameter max [mm] | 220 |
| Diameter [mm] | 220 |
| Cutting direction | Universal [UNI] |
| Type of feed | Universal [UNI] |
| Weight Kg | 0.79 |
| RPM max [min-1] | 8700 |
| Corner angle | 15 |
Application
- —for sizing cuts
Machines
- —table saws
- —vertical panel sizing saws
Design
- —vibration and noise damping ornaments
- —additional expansion slots
- —cutting material: HL Board 04 plus and HL Board 06
Advantages
- —extremely low-noise and smooth running thanks to vibration and noise damping ornaments as well as special expansion slot combinations
- —for each application case the correct tooth form
