SAW BLADES

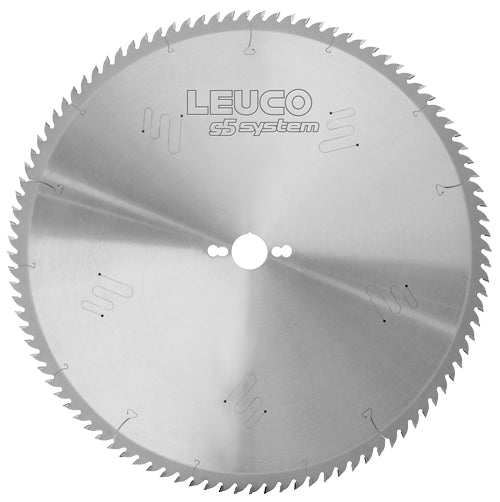

Topline Tungsten Carbide Sizing Saw Blade for HL Board 04 Plus
$226.24
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
LEUCO sizing blades for sizing cuts with vertical panel sizing saws & table saws showcase an extremely low-noise & smooth running thanks to vibration & noise damping ornaments as well as special expansion slot combinations. For each application, consider the correct tooth form/geometry for the perfect cut, every time.
VENDOR: LEUCO Circular Saw Blades
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CIR 220 x 3.2 x 2.2 x 30 Z64 | $226.24 | 192763 | |
| CIR 250 x 3.2 x 2.2 x 30 Z60 | $178.37 | 192764 | |
| CIR 250 x 3.2 x 2.2 x 30 Z80 | $187.03 | 192765 | |
| CIR 300 x 3.2 x 2.2 x 30 Z72 | $203.67 | 192766 | |
| CIR 300 x 3.2 x 2.2 x 30 Z96 | $249.69 | 192767 | |
| CIR 350 x 3.5 x 2.5 x 30 Z84 | $286.50 | 192768 | In Stock |
| CIR 350 x 3.5 x2.5 x 30 Z108 | $307.11 | 192769 | In Stock |
| CIR 400 x 3.5 x 2.5 x 30 Z96 | $338.79 | 192771 | |
| CIR 400 x 3.5 x 2.5 x 30 Z120 | $362.36 | 192772 | |
| CIR 450 x 4 x 2.8 x 30 Z132 | $645.90 | 192773 | In Stock |
Specifications for SKU: 192763
| Diameter - Outermost cutting point [mm] | 220 |
| Bore / shank diameter [mm] | 30 |
| Cutting width 1 [mm] | 3.2 |
| Clamping length [mm] | 2.2 |
| Pin holes [mm] | 2/7/42 |
| Tooth configuration | Alternate top bevel [WS] |
| Number of teeth | 64 |
| Number of teeth diameter [mm] | 64 |
| Cutting material specification | HL Board 04 [B04] |
| Cutting material group | Tungsten carbide [HW] |
| Diameter max [mm] | 220 |
| Diameter [mm] | 220 |
| Cutting direction | Universal [UNI] |
| Type of feed | Universal [UNI] |
| Weight Kg | 0.632 |
| RPM max [min-1] | 8700 |
| Corner angle | 15 |
Application
- —for sizing cuts
Machines
- —table saws
- —vertical panel sizing saws
Design
- —vibration and noise damping ornaments
- —additional expansion slots
- —cutting material: HL Board 04 plus and HL Board 06
Advantages
- —extremely low-noise and smooth running thanks to vibration and noise damping ornaments as well as special expansion slot combinations
- —for each application case the correct tooth form
