Topline Tungsten Carbide Sizing Saw Blade with DA-F Tooth Geometry
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
LEUCO sizing blades for sizing cuts with vertical panel sizing saws & table saws showcase an extremely low-noise & smooth running thanks to vibration & noise damping ornaments as well as special expansion slot combinations. For each application, consider the correct tooth form/geometry for the perfect cut, every time.
Full details, features, and machine fit are under Details below.
VENDOR: LEUCO Circular Saw Blades
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CIR 220 x 3.2 x 2.2 x 30 Z42 10 | $233.19 | 193326 | In Stock |
| CIR 250 x 3.2 x 2.2 x 30 Z48 10 "Hollow Ground" | $267.17 | 193327 | In Stock |
| CIR 303 x 3.2 x 2.2 x 30 Z60 10 "Hollow Ground" Extremely Straight Steel Plate | $385.16 | 193335 | In Stock |
| CIR 350 x 3.5 x 2.5 x 30 Z72 10 | $262.92 | 189691 | In Stock |
| CIR 400 x 3.5 x 2.5 x 30 Z84 10 | $353.78 | 189692 | In Stock |
| CIR 250 x 3.2 x 2.2 x 30 Z48 -6 | $161.59 | 189693 | In Stock |
| CIR 303 x 3.2 x 2.2 x 30 Z60 -6 | $227.02 | 193332 | In Stock |
| CIR 350 x 3.5 x 2.5 x 30 Z72 -6 | $262.62 | 189695 | In Stock |

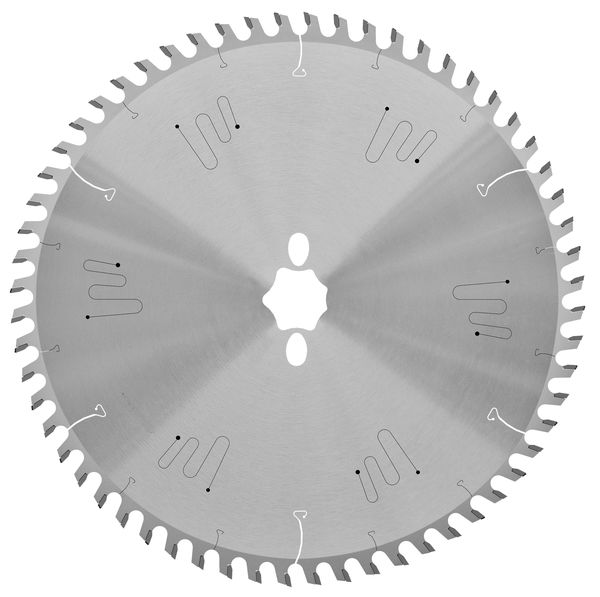

| CIR 303 x 3.2 x 2.2 x 30 Z60 10 "Hollow Ground" | $312.26 | 193328 | In Stock |
Specifications for SKU: 193326
| Diameter - Outermost cutting point [mm] | 220 |
| Bore / shank diameter [mm] | 30 |
| Cutting width 1 [mm] | 3.2 |
| Clamping length [mm] | 2.2 |
| Pin holes [mm] | 2/7/42 |
| Tooth configuration | Dachzahn + Flachzahn Duplovit [DA-F_DU] |
| Number of teeth | 42 |
| Number of teeth diameter [mm] | 42 |
| Cutting material specification | HL Board 06 [B06] |
| Cutting material group | Tungsten carbide [HW] |
| Diameter max [mm] | 220 |
| Diameter [mm] | 220 |
| Cutting direction | Universal [UNI] |
| Type of feed | Universal [UNI] |
| Weight Kg | 0.577 |
| RPM max [min-1] | 8700 |
Application
- —for sizing cuts
Machines
- —table saws
- —vertical panel sizing saws
Design
- —vibration and noise damping ornaments
- —cutting material: HL Board 06, HL Board 03 and HL Board 04 plus
Advantages
- —easyFix: NEW, EASY HANDLING, easy and smooth mounting of the saw blade on the machine despite high-precision bore tolerance
- —extremely low-noise and smooth running thanks to vibration and noise damping ornaments as well as special expansion slot combinations
LEUCO sizing blades for sizing cuts with vertical panel sizing saws & table saws showcase an extremely low-noise & smooth running thanks to vibration & noise damping ornaments as well as special expansion slot combinations. For each application, consider the correct tooth form/geometry for the perfect cut, every time.
easyFix: NEW, EASY HANDLING, easy and smooth mounting of the saw blade on the machine despite high-precision bore tolerance
extremely low-noise and smooth running thanks to vibration and noise damping ornaments as well as special expansion slot combinations
Ident-No. 193335: extremely straight steel plate for Striebig panel sizing saws with scoring device
NL**- Combi3 = 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60
