SAW BLADES

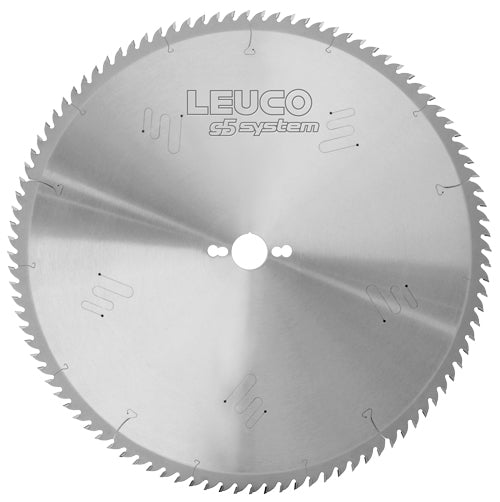

Topline Tungsten Carbide Sizing Saw Blade with G6 Tooth Geometry
$276.30
● IN STOCK
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
LEUCO sizing blades for sizing cuts with vertical panel sizing saws & table saws showcase an extremely low-noise & smooth running thanks to vibration & noise damping ornaments as well as special expansion slot combinations. For each application, consider the correct tooth form/geometry for the perfect cut, every time.
VENDOR: LEUCO Circular Saw Blades
Specifications for SKU: 192783
| Diameter - Outermost cutting point [mm] | 300 |
| Bore / shank diameter [mm] | 30 |
| Cutting width 1 [mm] | 3.2 |
| Clamping length [mm] | 2.2 |
| Pin holes [mm] | 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60 |
| Tooth configuration | G6-1 (TR1 TR2 TR1 TR2 TR2 TR2) [G6-1] |
| Number of teeth | 96 |
| Number of teeth diameter [mm] | 96 |
| Cutting material specification | HL Board 04 [B04] |
| Cutting material group | Tungsten carbide [HW] |
| Diameter max [mm] | 300 |
| Diameter [mm] | 300 |
| Cutting direction | Universal [UNI] |
| Type of feed | Universal [UNI] |
| Weight Kg | 1.197 |
| RPM max [min-1] | 6400 |
Application
- —for sizing cuts
Machines
- —table saws
- —vertical panel sizing saws
Design
- —vibration and noise damping ornaments
- —additional expansion slots
- —cutting material: HL Board 04 plus and HL Board 06
Advantages
- —extremely low-noise and smooth running thanks to vibration and noise damping ornaments as well as special expansion slot combinations
- —for each application case the correct tooth form
