SAW BLADES

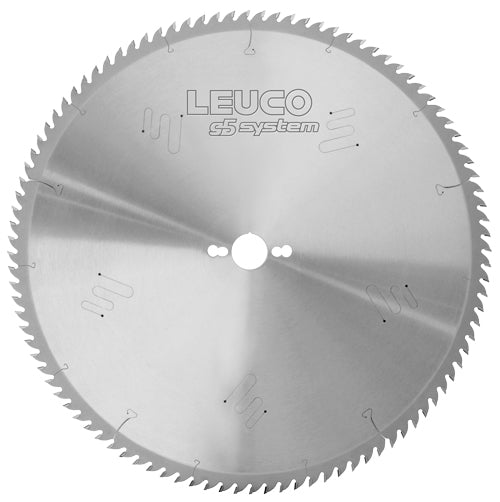

Topline Tungsten Carbide Sizing Saw Blade with TR-F-FA Tooth Geometry
$263.14
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
LEUCO sizing blades for sizing cuts with vertical panel sizing saws & table saws showcase an extremely low-noise & smooth running thanks to vibration & noise damping ornaments as well as special expansion slot combinations. For each application, consider the correct tooth form/geometry for the perfect cut, every time.
VENDOR: LEUCO Circular Saw Blades
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CIR 250 x 3.2 x 2.2 x 30 Z60 | $263.14 | 192785 | |
| CIR 250 x 3.2 x 2.2 x 30 Z80 | $263.14 | 192786 | |
| CIR 300 x 3.2 x 2.2 x 30 Z72 | $263.14 | 192787 | |
| CIR 300 x 3.2 x 2.2 x 30 Z96 | $263.14 | 192788 |
Specifications for SKU: 192785
| Diameter - Outermost cutting point [mm] | 250 |
| Bore / shank diameter [mm] | 30 |
| Cutting width 1 [mm] | 3.2 |
| Clamping length [mm] | 2.2 |
| Pin holes [mm] | 2/7/42 + 2/9/46 + 2/10/60 |
| Tooth configuration | Trapezzahn + Flachzahn mit Fase [TR-FFA] |
| Number of teeth | 60 |
| Number of teeth diameter [mm] | 60 |
| Cutting material specification | HL Board 04 [B04] |
| Cutting material group | Tungsten carbide [HW] |
| Diameter max [mm] | 250 |
| Diameter [mm] | 250 |
| Cutting direction | Universal [UNI] |
| Type of feed | Universal [UNI] |
| Weight Kg | 1.01 |
| RPM max [min-1] | 7700 |
Application
- —for sizing cuts
Machines
- —table saws
- —vertical panel sizing saws
Design
- —vibration and noise damping ornaments
- —additional expansion slots
- —cutting material: HL Board 04 plus and HL Board 06
Advantages
- —extremely low-noise and smooth running thanks to vibration and noise damping ornaments as well as special expansion slot combinations
- —for each application case the correct tooth form
