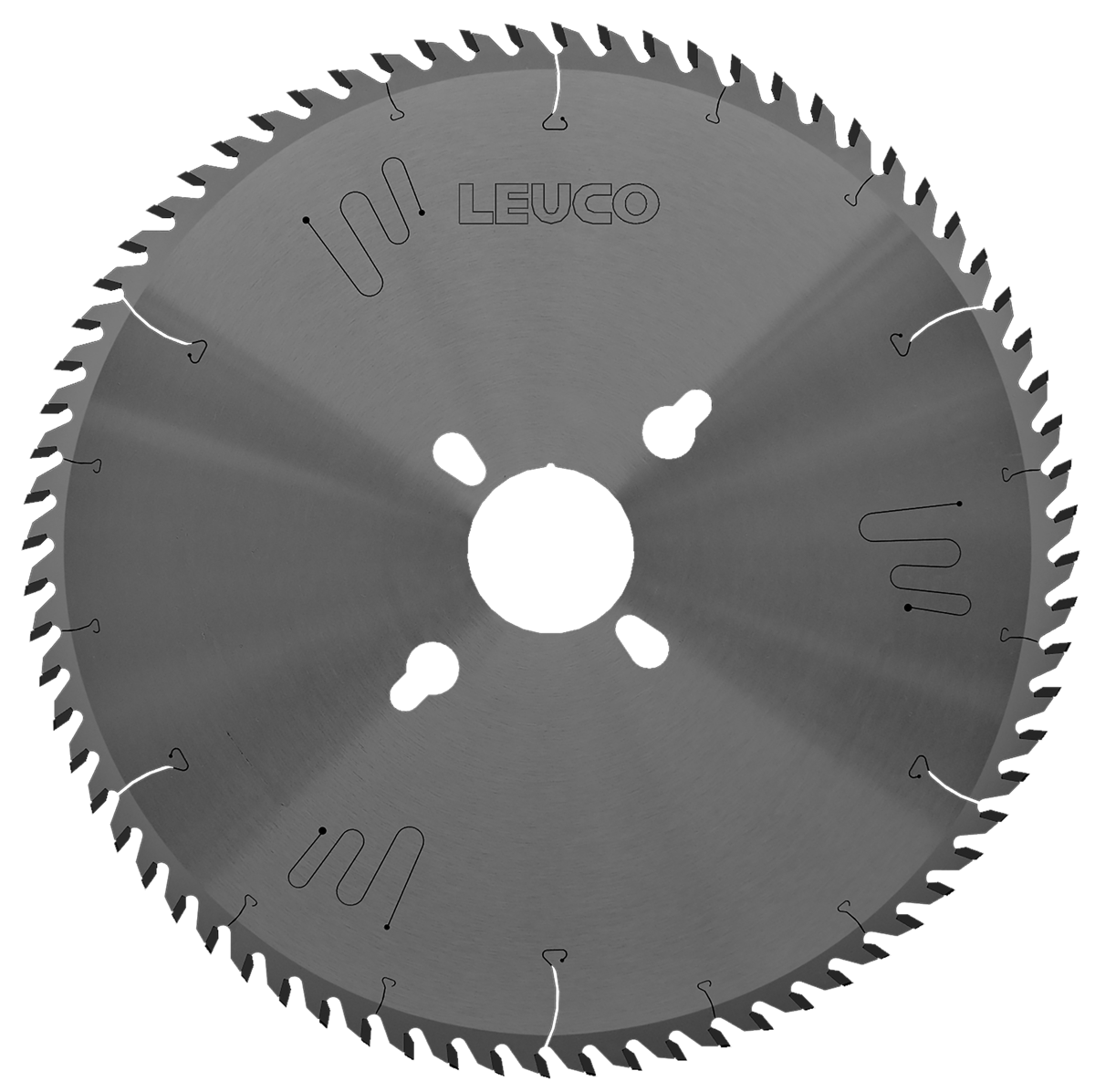

Topline U-Cut Max Tungsten Carbide Panel Sizing Saw Blades with TR-F Tooth Geometry
$510.47
● IN STOCK
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
At LEUCO "U-Cut MAX" simply means; universal cut with higher edge life thanks to up to 6 times more resharpenings than U-Cut TR-F. For sizing cuts in plastic-laminated panels and plywood in single sheets and stacks on your panel saw these blades bring the optimum solution! The triple chip/flat “TR-F” tooth configuration these blades bring improved cutting quality and optimized noise reduction thanks to laser ornaments.
VENDOR: LEUCO Circular Saw Blades
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CIR 350 x 4.4 x 60 Z72 | $510.47 | 193121 | In Stock |
| CIR 350 x 4.4 x 75 Z72 | $510.47 | 193122 | In Stock |
| CIR 380 x 4.4 x 60 Z72 | $551.79 | 193123 | In Stock |
| CIR 450 x 4.4 x 30 Z72 | $443.18 | 192952 | In Stock |
| CIR 450 x 4.8 x 60 Z72 | $623.10 | 193129 | In Stock |
Specifications for SKU: 193121
| Diameter - Outermost cutting point [mm] | 350 |
| Bore / shank diameter [mm] | 60 |
| Cutting width 1 [mm] | 4.4 |
| Clamping length [mm] | 3.2 |
| Pin holes [mm] | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 |
| Tooth configuration | Trapezzahn + Flachzahn [TR-F] |
| Number of teeth | 72 |
| Number of teeth diameter [mm] | 72 |
| Cutting material specification | HL Board 04 [B04] |
| Cutting material group | Tungsten carbide [HW] |
| Diameter max [mm] | 350 |
| Diameter [mm] | 350 |
| Cutting direction | Universal [UNI] |
| Type of feed | Mechanical feed [MEC] |
| Weight Kg | 2.531 |
| RPM max [min-1] | 5500 |
| Bevel angle 1 [°] | 45 |
Application
- —for sizing cuts in plastic-laminated panels
Machines
- —panel sizing saws

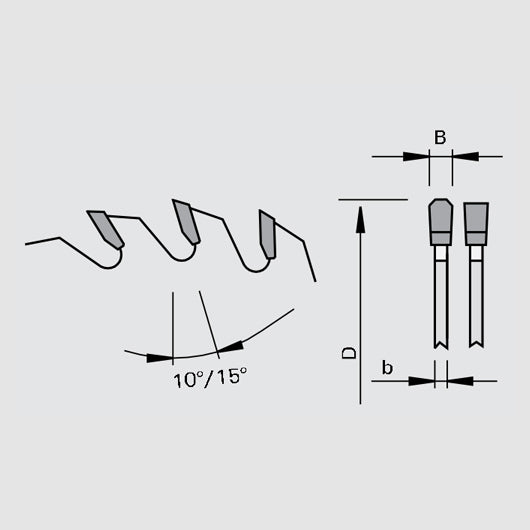

Design
- —up to ØD=360, 10 degree hook angle
- —from ØD=380, 15 degree hook angle
- —tooth configuration: triple chip / flat "TR-F"
- —cutting material: HW HL Board 04 plus
Advantages
- —higher edge life thanks to up to 6 times more resharpenings than U-Cut TR-F
- —noise reduction thanks to laser ornaments
