SAW BLADES

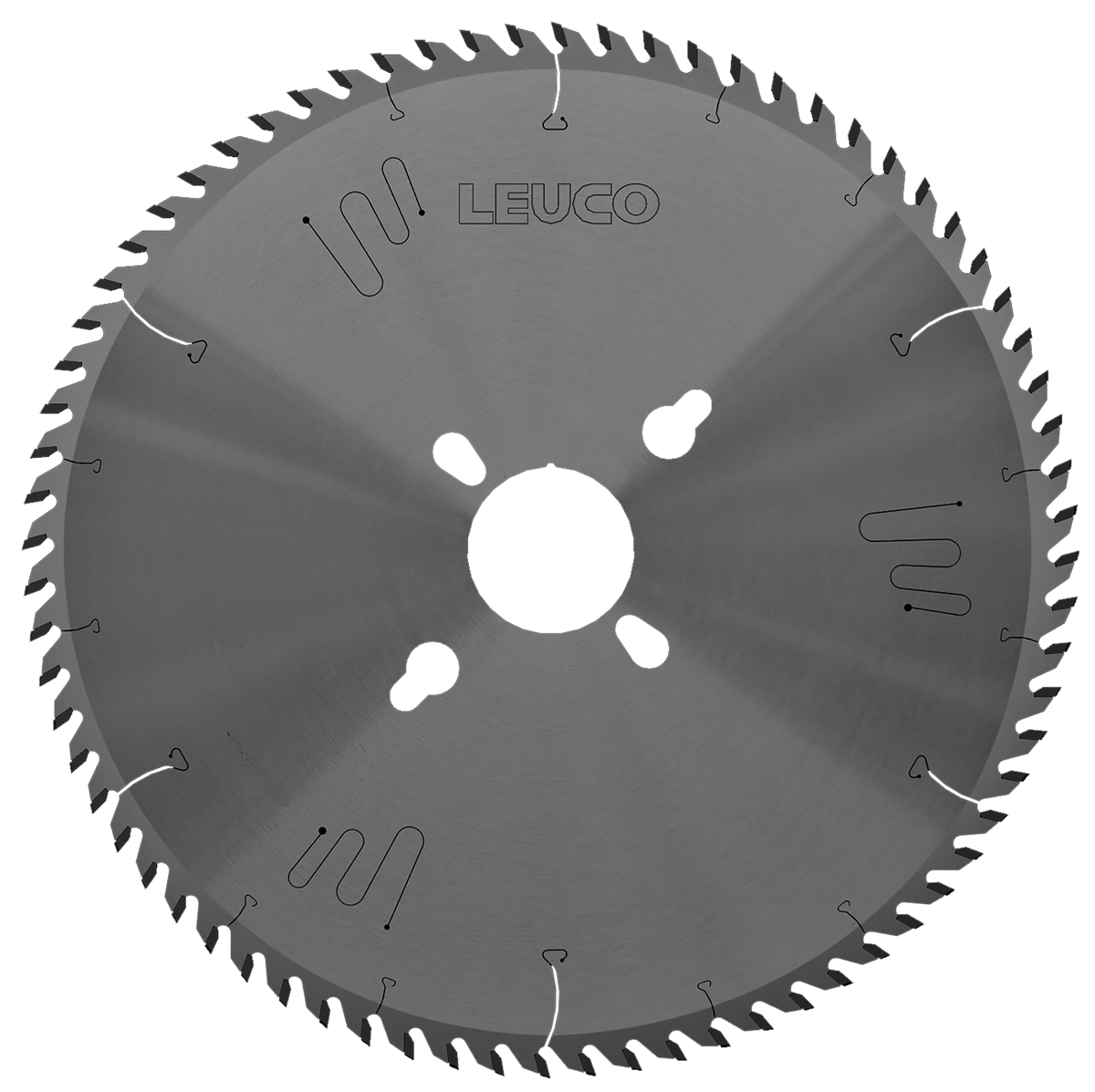

Topline U-Cut Tungsten Carbide Panel Sizing Saw Blades with TR-F Tooth Geometry
$358.59
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
At LEUCO U-Cut simply means, universal cut! For sizing cuts in plastic-laminated panels and plywood in single sheets and stacks on your panel saw these blades bring the optimum solution! The the triple chip/flat “TR-F” tooth configuration these blades bring improved cutting quality and optimized noise reduction thanks to laser ornaments.
VENDOR: LEUCO Circular Saw Blades
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| CIR 300 x 4.4 x 30 Z60 | $358.59 | 192901 | |
| CIR 300 x 4.4 x 75 Z72 | $425.61 | 192902 | |
| CIR 305 x 3.2 x 30 Z60 | $348.64 | 192903 | |
| CIR 305 x 4.4 x 30 Z60 | $357.90 | 192904 | |
| CIR 305 x 4.4 x 60 Z60 | $368.61 | 192905 | |
| CIR 320 x 4.4 x 65 Z60 | $337.20 | 192906 | In Stock |
| CIR 320 x 4.4 x 75 Z72 | $493.37 | 192907 | |
| CIR 350 x 4.4 x 30 Z72 | $397.84 | 192908 | In Stock |
| CIR 350 x 4.4 x 60 Z72 | $417.04 | 192909 | In Stock |
| CIR 350 x 4.4 x 75 Z60 | $387.81 | 192910 | |
| CIR 355 x 4.4 x 75 Z72 | $418.50 | 192912 | |
| CIR 355 x 4.4 x 75 Z60 | $439.20 | 192911 | |
| CIR 355 x 4.4 x 80 Z72 | $459.13 | 192913 | In Stock |
| CIR 360 x 4.4 x 65 Z72 | $473.40 | 192914 | In Stock |
| CIR 380 x 4.4 x 60 Z72 | $439.89 | 192915 | In Stock |
| CIR 380 x 4.8 x 60 Z72 | $498.34 | 192916 | In Stock |
| CIR 400 x 4.25 x 30 Z72 | $528.99 | 192917 | |
| CIR 400 x 4.4 x 30 Z96 | $633.81 | 192918 | |
| CIR 400 x 4.4 x 30 Z72 | $460.59 | 192919 | In Stock |
| CIR 400 x 4.4 x 60 Z72 | $486.94 | 192920 | |
| CIR 400 x 4.4 x 80 Z72 | $359.50 | 192921 | In Stock |
| CIR 400 x 4.8 x 60 Z72 | $353.49 | 192922 | In Stock |
| CIR 420 x 4.8 x 60 Z72 | $388.61 | 192924 | |
| CIR 430 x 4.4 x 30 Z72 | $404.67 | 192925 | |
| CIR 430 x 4.4 x 60 Z72 | $380.35 | 192926 | |
| CIR 430 x 4.4 x 75 Z96 | $602.40 | 192927 | In Stock |
| CIR 430 x 4.4 x 80 Z72 | $466.24 | 192928 | In Stock |
| CIR 450 x 4.4 x 30 Z72 | $481.97 | 192929 | In Stock |
| CIR 450 x 4.4 x 60 Z72 | $517.59 | 192931 | In Stock |
| CIR 450 x 4.8 x 60 Z72 | $545.40 | 192930 | In Stock |
| CIR 450 x 4.8 x 80 Z72 | $541.11 | 192932 | In Stock |
| CIR 460 x 4.4 x 30 Z72 | $581.61 | 192933 | In Stock |
| CIR 470 x 4.4 x 75 Z96 | $655.20 | 192936 | |
| CIR 470 x 4.4 x 75 Z72 | $735.73 | 192934 | In Stock |
| CIR 470 x 4.8 x 70 Z72 | $657.34 | 192935 | |
| CIR 480 x 4.4 x 30 Z72 | $587.49 | 192937 | In Stock |
| CIR 480 x 4.8 x 80 Z72 | $573.21 | 192939 | In Stock |
| CIR 500 x 4.4 x 30 Z60 | $484.38 | 192940 | |
| CIR 500 x 4.8 x 60 Z72 | $512.49 | 192941 | In Stock |
| CIR 520 x 4.8 x 30 Z72 | $561.78 | 192942 | |
| CIR 520 x 4.8 x 60 Z72 | $557.38 | 192943 | |
| CIR 600 x 5.8 x 60 Z72 | $694.46 | 192944 | In Stock |
| CIR 650 x 6.2 x 40 Z72 | $967.45 | 192945 |
Specifications for SKU: 192901
| Diameter - Outermost cutting point [mm] | 300 |
| Bore / shank diameter [mm] | 30 |
| Cutting width 1 [mm] | 4.4 |
| Clamping length [mm] | 2.8 |
| Pin holes [mm] | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94 |
| Tooth configuration | Trapezzahn + Flachzahn [TR-F] |
| Number of teeth | 60 |
| Number of teeth diameter [mm] | 60 |
| Interface towards the machine | Bore [BO] |
| Cutting material specification | HL Board 04 [B04] |
| Cutting material group | Tungsten carbide [HW] |
| Body thickness reduced | 2.8 |
| Diameter max [mm] | 300 |
| Diameter [mm] | 300 |
| Cutting direction | Universal [UNI] |
| Type of feed | Universal [UNI] |
| Total length 1 [mm] | 3.6 |
| Weight Kg | 1.6 |
| RPM max [min-1] | 6400 |
| Bevel angle 1 [°] | 45 |
| Quality | topline [TL] |
Application
- —for sizing cuts in plastic-laminated panels
Machines
- —panel sizing saws
Design
- —up to ØD=360, 10 degree hook angle
- —from ØD=380, 15 degree hook angle
- —tooth configuration: triple chip / flat "TR-F"
- —cutting material: HW HL Board 04 plus
Advantages
- —improved cutting quality thanks to optimized cutting geometry
- —noise-reduction thanks to laser ornaments
- Processing instructions: Rehau RAUVISIO cube Urban Concrete
- Panel sizing saw blades range HW DP
- Trend materials LEUCO tool recommendations
