Tungsten Carbide 2 Flute 70mm Mosquito Through-Hole Bit
Confused about compatibility?
Ask our AI Advisor about feed rates, machine compatibility, and custom applications for this tool.
Description
Drill bits with low cutting pressure and good chip removal are recommended for drilling processes such as dowels and through-holes. The LEUCO Mosquito bits provide chip-free drilling of through-holes in solid woods and wood-based panels on CNC machining centers, automatic and portable boring machines. The tungsten carbide tipped drills are designed with a special cutting-edge geometry and plunging tip made from super-fine grain material which provides long edge life. LEUCO Mosquito drills provide optimal cutting solutions with consistent quality of processing panels efficiently, chip-free.
VENDOR: LEUCO Boring Tools
| Size / Variant | Price | SKU | Stock |
|---|---|---|---|
| BOR 5 x 10 x 35 x 70 RH | $45.84 | 182462 | |
| BOR 5 x 10 x 35 x 70 LH | $45.84 | 182463 | |
| BOR 7 x 10 x 35 x 70 RH | $59.26 | 183690 | |
| BOR 7 x 10 x 35 x 70 LH | $59.26 | 183691 | |
| BOR 10 x 10 x 35 x 70 RH | $72.13 | 183692 | |
| BOR 10 x 10 x 35 x 70 LH | $75.81 | 183693 |

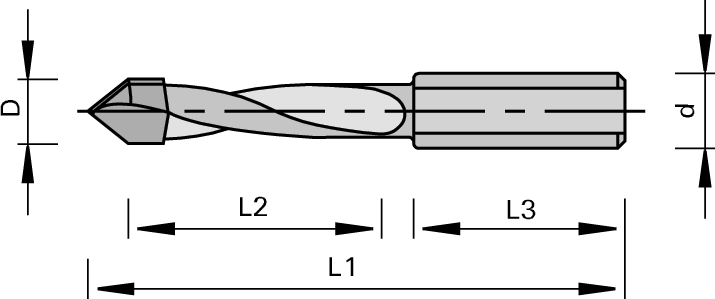

Specifications for SKU: 182462
| Diameter - Outermost cutting point [mm] | 5 |
| Bore / shank diameter [mm] | 10 |
| Clamping length [mm] | 26 |
| Number of teeth | 2 |
| Number of teeth diameter [mm] | 2 |
| Total length | 70 |
| Cutting material group | Tungsten carbide [HW] |
| Diameter max [mm] | 5 |
| Diameter [mm] | 5 |
| Cutting direction | Left-hand rotation [LH] |
| Type of feed | Manual feed [MAN] |
| Axial working depth 1 [mm] | 35 |
| Weight Kg | 0.023 |
| RPM max [min-1] | 8000 |
Application
- —for chip-free drilling of through-holes in solid woods and wood-based panels
Machines
- —portable boring machines
- —automatic boring machines
- —CNC machining centers
Design
- —special cutting edge geometry
- —HW-plunging tip made from super-fine grain material
Advantages
- —chip-free hole edges thanks to special cutting edge geometry
- —long edge lives thanks to HW plunging tip
- —high process safety thanks to constant quality of the bores for a long time
